Description

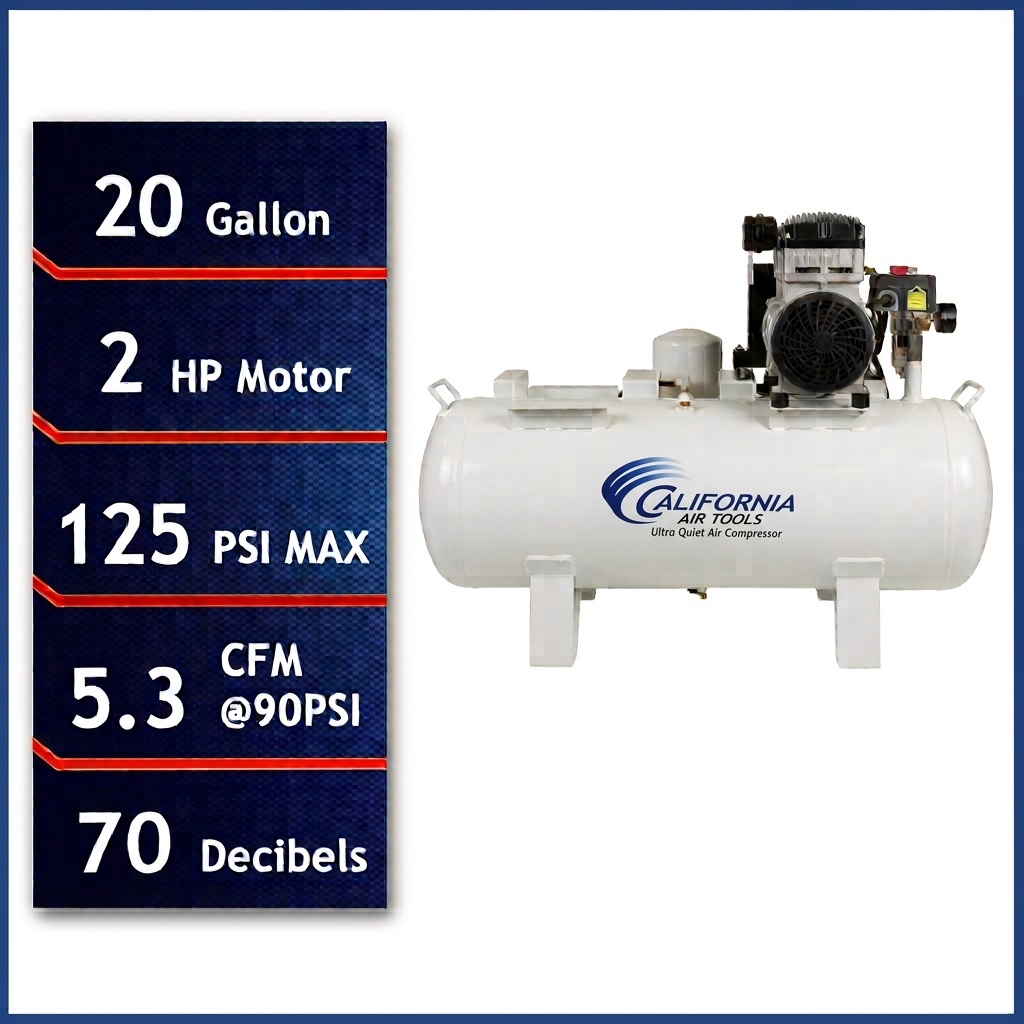

CALIFORNIA AIR TOOLS 20020DCADC Powerful 2.0 Hp Ultra Quiet, Ultra Dry & Oil-Free 20 Gallon Air Compressor with 98% Air Drying System and Automatic Drain Valve (110v 60hz)
70 dB Noise Level
110v 60hz
2.0 HP (Rated/Running)
20 Gallon Steel Horizontal Air Tank
6.40 CFM @ 40 PSI
5.30 CFM @ 90 PSI
98% Air Drying System (Class 2/3)
ISO 8573 2.3.1 Compliant (PDP performance range -20′ F. to -51′ F.)

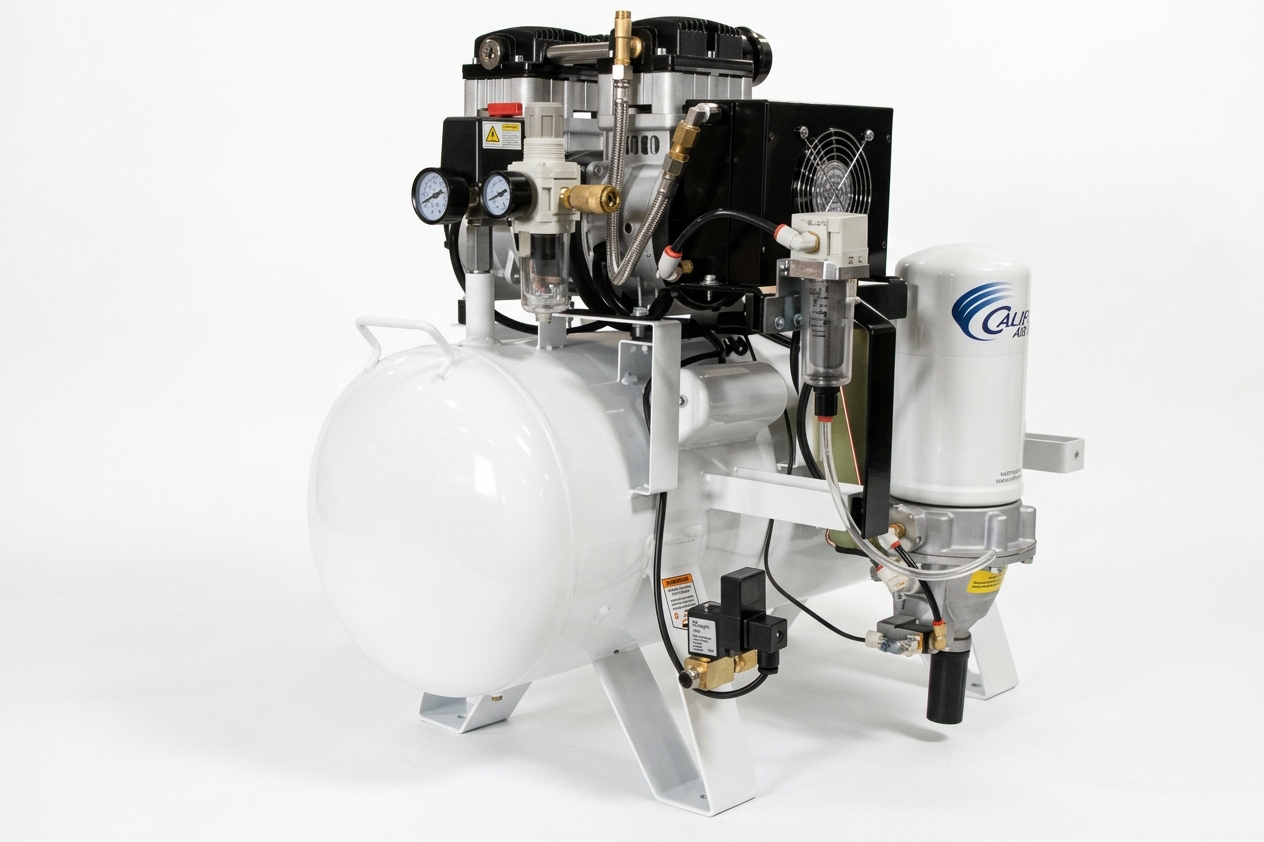

The CALIFORNIA AIR TOOLS 20020DCADC Ultra Quiet, Ultra Dry Oil-Free 20 Gallon Air Compressor with Air Drying System is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound.
The Powerful 2.0 HP motor operates at only 1680 RPM creating less noise and less wear.
The SP-9421 Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*
The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
The CAT-20020DCADC Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and eliminates oil from being in the air.

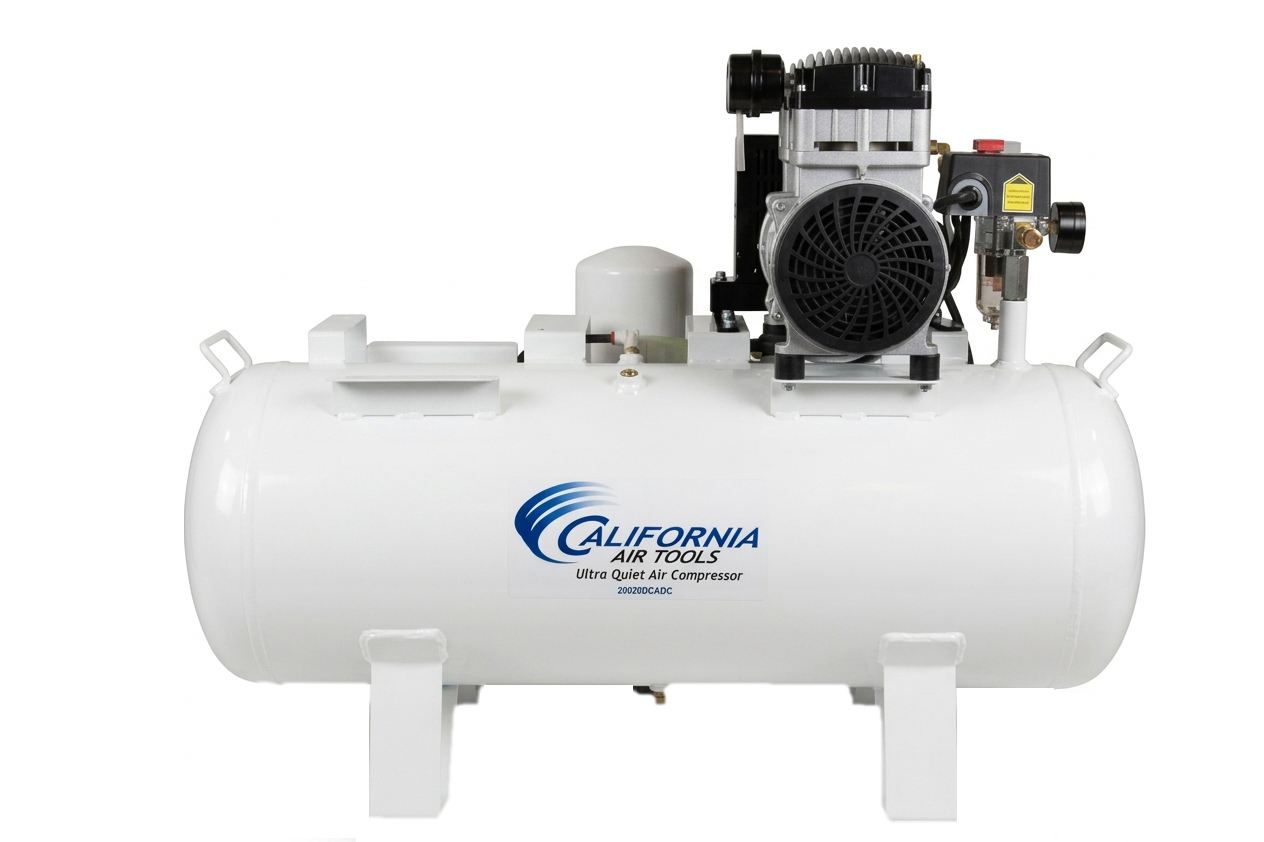

The large 20 Gallon Horizontal Steel Air Tank is just the right size to fit under a bench, desk or cabinet.
The Air Dryer is specially designed to remove up to 98% of the water vapor from the air to protect sensitive tools and machinery.
PDP performance range (-20′ F. to -51′ F.)
Air Quality: ISO 8573 – Class 2.3.1

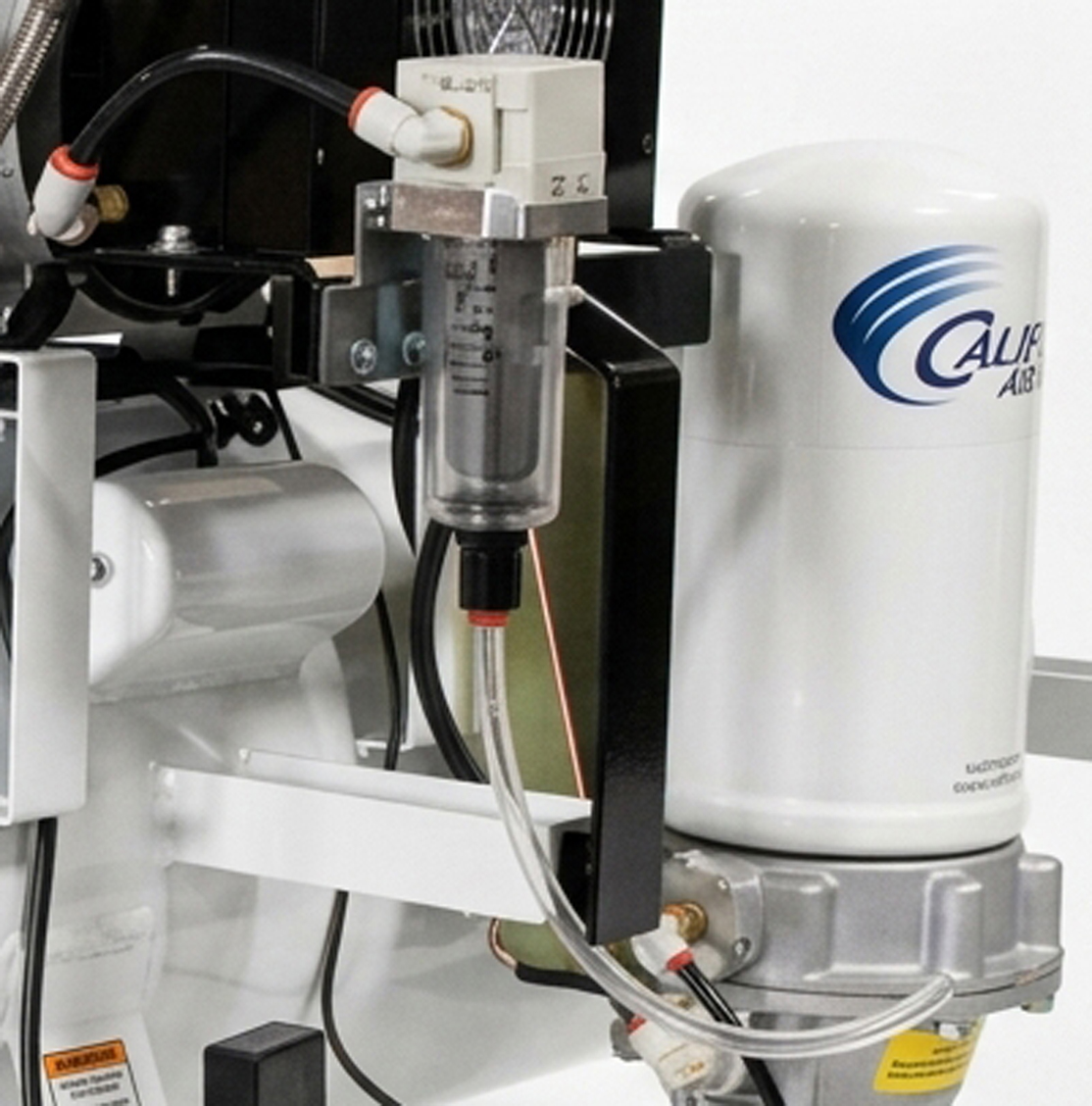

To dry the air from the air compressor an Aftercooler and 98% Air Dryer are utilized.
The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer.

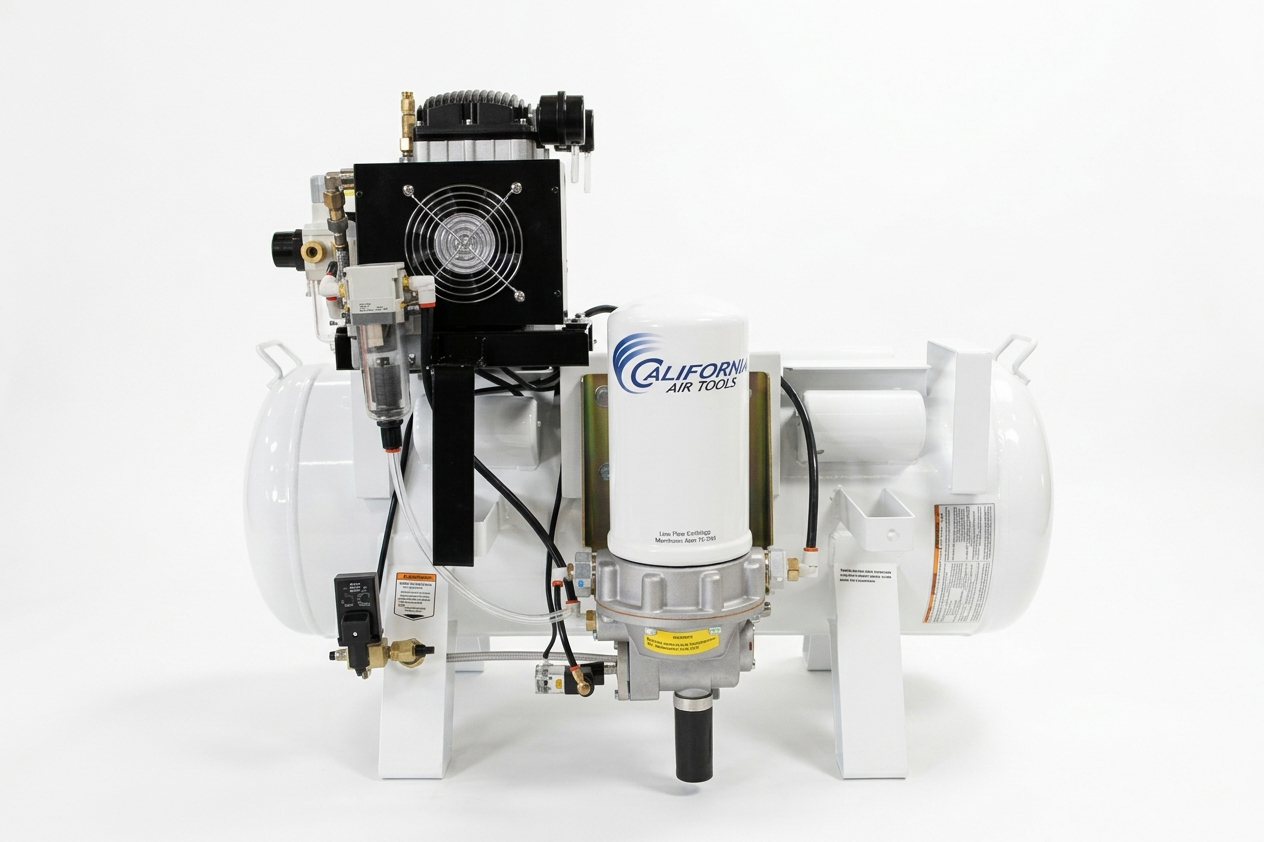

The easy to replace “Spin-On” Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the air.
This Ultra Dry cartridge dryer has a life of 2-years before replacement.
The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank.
The manually set timer allows you to set the time for both the frequency and duration of the draining process.
Designed for the person looking for Power, 98% Dry Air with Low Dew Point Air Flow and Less Service with at Least 30% Less Noise! Ideal for Dental, Milling, Surgical, Manufacturing Clean Rooms, Restaurant and General Engineering Applications.
SUPPORT VIDEO – 98% Class 2/3 Dry Air Model Features (Reference: 10020HDCADC 10-Gallon model)
SUPPORT VIDEO – Auto Drain Feature and Function.
SUPPORT VIDEO – Dry Air Compressor Water Purging and Draining
CAT-20020DCADC Features:
* Ultra Quiet – Only 70 decibels
* Oil-Free Pump (Class 1) – Cleaner air for better tool operation.
Less maintenance and Costs.

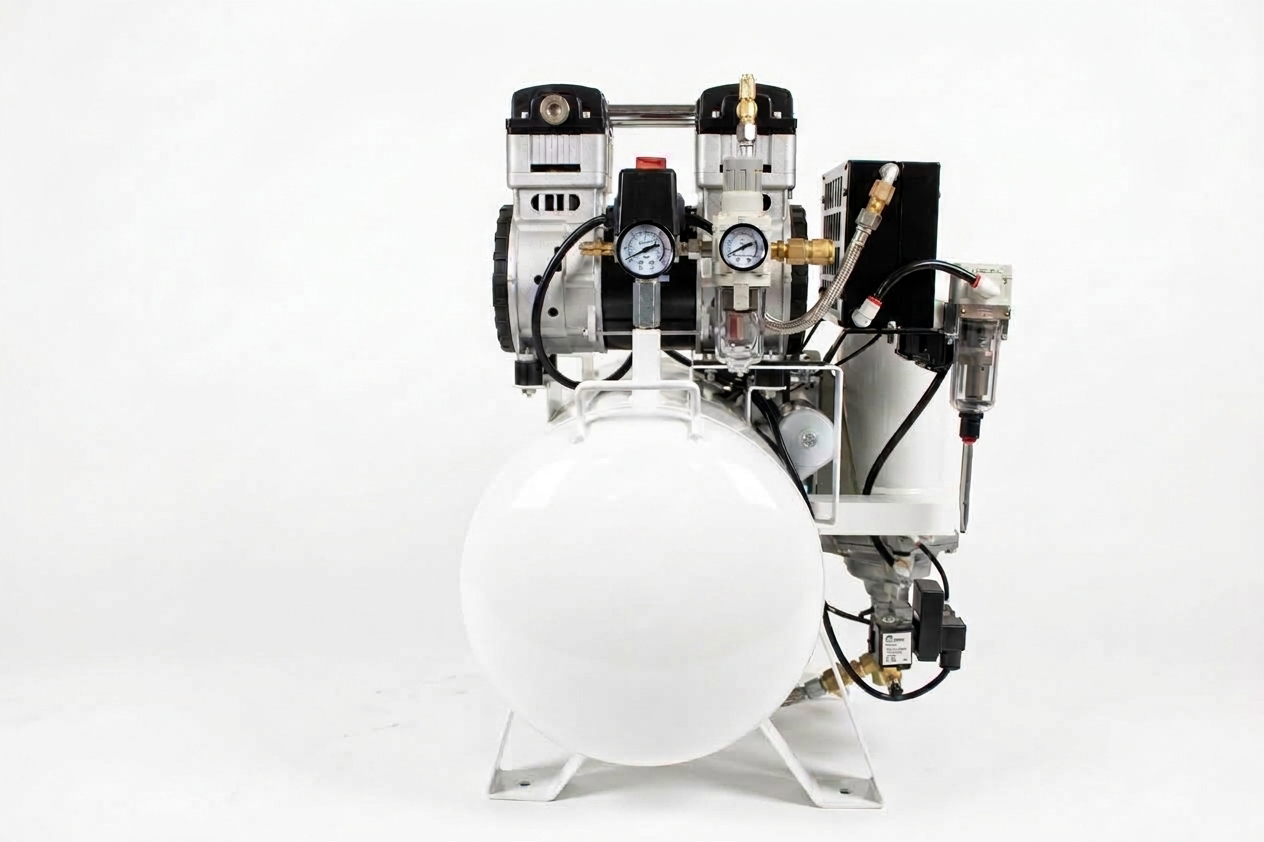

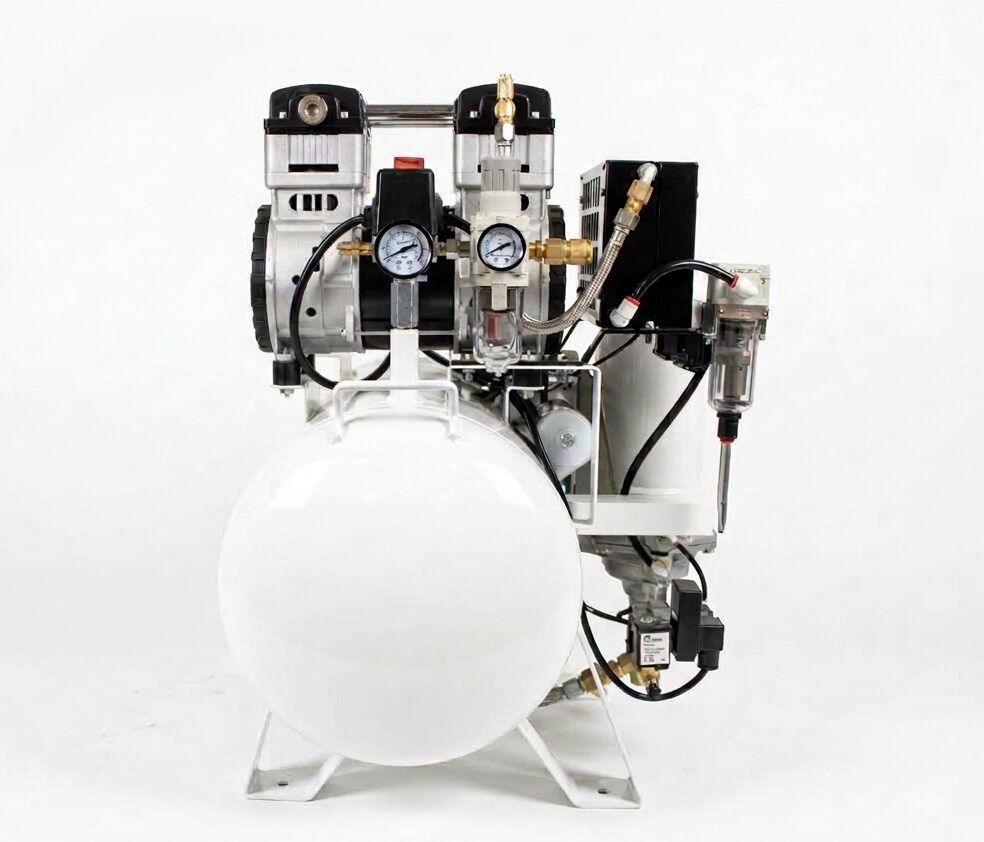

* Two pressure control gauges
* Easy Start Valve – For Less Starting Amperage
* One – Female industrial “Push to Connect” quick connector
* 0.01 Micron Prefilter (1)
* 5.0 Micron (Class 2) Air Filter & Regulator
* Condor Pressure Switch
* Thermal Overload Protector
* 125 PSI Maximum Pressure
* 110 Volts / 60 Hertz / Single Phase
* Low Amp Draw – 14 Amps
* Time to fill tank from empty to full – 240 Seconds
* Recovery time from 95 PSI to 125 PSI – 60 Seconds
* Duty Cycle – 70/30*
* Less heat which dissipates more efficiently
* 10 Gallon Steel Air Tank for Commercial use.
* L (37.1″) x W/D (22″) x H (30.5″)
* 125 lbs
* Air Dryer Cartridge uses a High-Temperature Molecular Sieve Desiccant
Easy to remove (spin off) and replace every 2 years
* Aftercooler (condenser)
* PDP performance range (-20′ F. to -51′ F.)
* Air Quality: ISO 8573 – Class 2.3.1 (Class 2/3 Dry Air)
* EZ-1-2321 Auto Drain Valve Factory Installed
* 1 Year Limited Warranty
* Motor/Pump comes complete (2) Air Filters
* Commercial Use: Refer to State & City Codes
* Non-ASME Air Tank
* Assembled in USA with global components
PERIODIC MAINTENANCE REQUIREMENTS:
Replace the 98% Air Dryer Cannister/Cartridge every 4000 operating hours (~2 years on average).
Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment. Part Number 90260
Add-On Options:
8mm PTFE Black Hose Tubing (10 feet long) to connect to Automatic Drain Valve
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Industrial Flex 1/4in 25 Foot Hybrid Air Hose
California Air Tools 20020DCADC Product Data Sheet
EZ-1 Automatic Drain Valve Owner’s Manual 12-20
Air Quality classes defined in ISO 8573
Ultra Dry Service Kit Spin – On Filter
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
Auto Drain Connectivity (Instructions)
*70/30 Duty Cycle – Click Here For More Information
