Description
CALIFORNIA AIR TOOLS 10020DSPC Powerful 2.0 Hp Ultra Quiet & Oil-Free Air Compressor with 80% Air Dryer and Aftercooler in a Sound Proof Cabinet
58 dB Noise Level
110v 60hz
2.0 HP (Rated/Running)
10 Gallon Steel Tank
6.40 CFM @ 40 PSI
5.30 CFM @ 90 PSI
80% Air Drying System

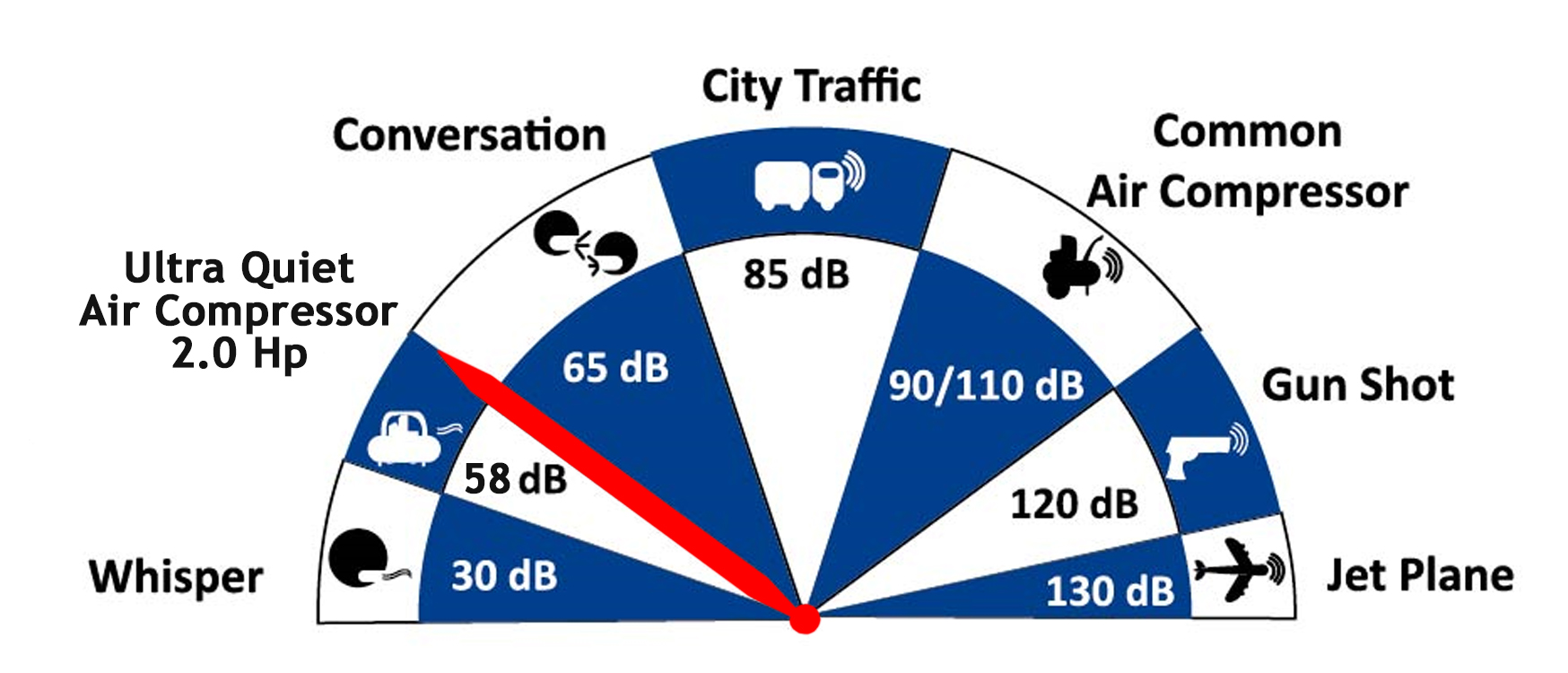

The CALIFORNIA AIR TOOLS 10020DSPC Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 2.0 horse power air compressors in the industry having only 58 decibels of sound.
The powerful 2.0 HP motor operates at only 1680 RPM creating less noise, vibration and creating less wear.
The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*
The SP-9421 Motor/Pump is tested for a minimum pump life of 3000 hours before service. 30% more life before repair
Large 10.0 gallon steel air tank.
The 80% Air Dyer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery.
To dry the air from the air compressor an Aftercooler and 80% Air Dryer are utilized.
The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dyer.

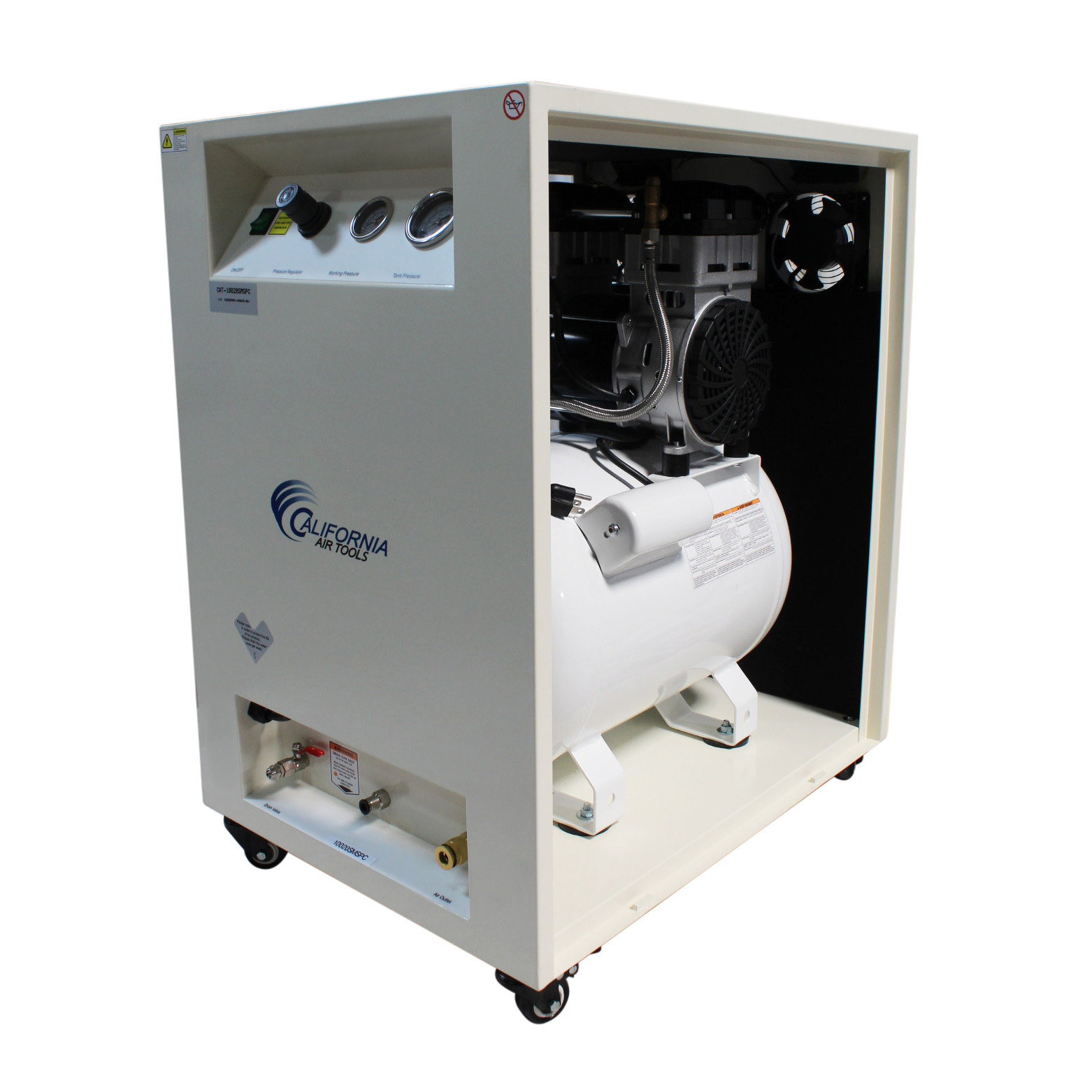

The sturdy large steel cabinet on caster wheels makes it easier to move and reduces the noise level.
The interior of the cabinet is lined with acoustic sound proofing foam insulation to reduce the air compressor’s noise and vibration.
The two latching door handles allows for easy access to the air compressor.”
The two exhaust fans are designed to remove the air from the cabinet for a cooler running air compressor.
This air compressor is ideal for anyone working inside (office, shop, store, warehouse or home) where noise is a major issue.
Video: Air Compressor 80% Dryer Function
Video: Dry Air Compressor Water Purging and Draining
Features:
* Ultra Quiet – Only 58 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Two pressure control gauges
* Two Female Industrial “Push to Connect” quick connector air ports (1/4″ NPT)
* Thermal Overload Protector
* 130 PSI Maximum Pressure
* Kick On Pressure 100 PSI – Kick Off Pressure 130 PSI
* 110v / 60 Hz
* Low Amp Draw – Only 14.0 Amps
* Tank fill rate from empty to full – 130 Seconds
* Recovery time from 100 PSI to 130 PSI – 40 Seconds
* Duty Cycle – 70/30*
* L (26″) x W (33″) x H (39″)
* 220 pounds
* Air Dyer – Includes Activated Alumina desiccant with a 4000 hour life.
Activated Alumina is used in air prepurification (due to it’s high water
and carbon dioxide adsorption capacity) and adsorption of sulphur
compounds.
* Aftercooler (condenser)
* 1 Year Limited Warranty
* Commercial Use: Refer to State & City Codes
* Non-ASME Air Tank
* Assembled in USA with global components
DRY AIR SYSTEM MAINTENANCE:
Recommended replacement of 1lb bag of desiccant, located within vertical dry air tower, every 3000-4000 motor/pump running hours (1-2 years/average).
PERIODIC MAINTENANCE REQUIREMENTS:
Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
Part Number 90260
Add-On Options:
8mm PTFE Black Hose Tubing (10 feet long) to connect to Automatic Drain Valve
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 50 Foot Hybrid Air Hose
317 Water (moisture) & Oil Separator Air Filter 1/4″ NPT
Refrigerated 98% Air Dryer, RD-91502, 110v 60hz
EZ2321ADL Automatic Drain Valve Long Extension Kit (110v 60 hz)
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
Auto Drain Connectivity (Instructions)
*70/30 Duty Cycle – Click Here For More Information
