Description
58 dB Noise Level
110v 60hz
2.0 HP (Rated/Running)
10 Gallon Steel Tank
6.40 CFM @ 40 PSI
5.30 CFM @ 90 PSI
80% Air Drying System
The CALIFORNIA AIR TOOLS 10020DSPCAD Ultra Quiet & Oil-Free 10-Gallon Air Compressor is designed to be one of the quietest 2.0 horse power air compressors in the industry having only 58 decibels of sound.
The powerful 2.0 HP motor operates at only 1680 RPM creating less noise, vibration and creating less wear.
The Oil-Free Dual Piston Pump System is engineered for longevity, high performance and durability.
The SP-9421 Motor/Pump is tested for a minimum pump life of 3000 hours before service. 30% more life before repair
Large 10.0 gallon steel air tank.
The 80% Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery.
To dry the air from the air compressor an Aftercooler and Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the 80% Air Dryer.
The sturdy large steel cabinet on caster wheels makes it easier to move and reduces the noise level.
The interior of the cabinet is lined with acoustic sound proofing foam insulation to reduce the air compressor’s noise and vibration.
The two latching door handles allows for easy access to the air compressor.

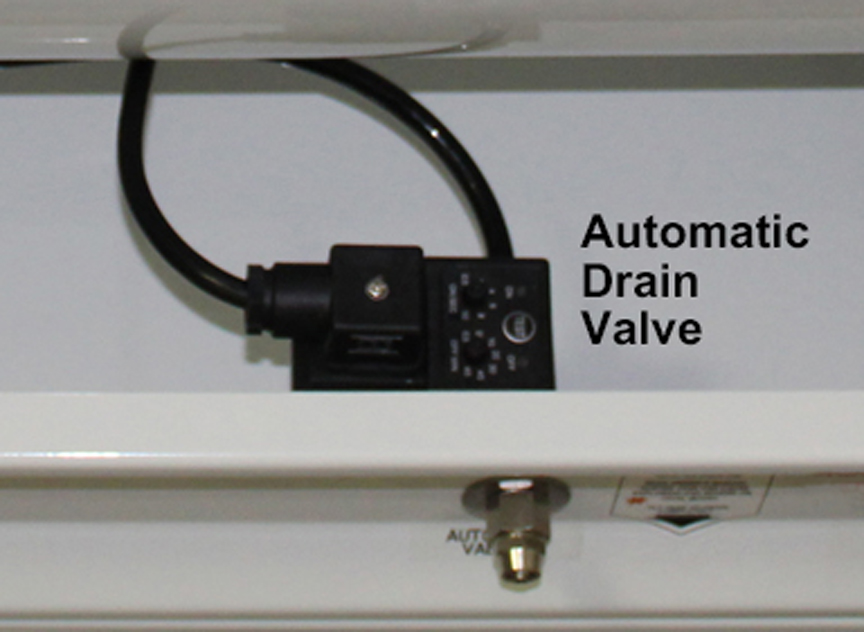

The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process.
The two exhaust fans are designed to remove the air from the cabinet for a cooler running air compressor.
This air compressor is ideal for anyone working inside (office, shop, store, warehouse or home) where noise is a major issue.
Video: Air Compressor 80% Dryer Function
Video: Dry Air Compressor Water Purging and Draining
Features:
* Ultra Quiet – Only 58 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Two pressure control gauges
* Two Female Industrial “Push to Connect” quick connector air ports (1/4″ NPT)
* Thermal Overload Protector
* 130 PSI Maximum Pressure
* Kick On Pressure 100 PSI – Kick Off Pressure 130 PSI
* 110v / 60 Hz
* Low Amp Draw – Only 14.0 Amps
* Tank fill rate from empty to full – 130 Seconds
* Recovery time from 100 PSI to 130 PSI – 40 Seconds
* Duty Cycle – 70/30
* Maximum continuous running 30-60 min. (Depending PSI & CFM)
* L (26″) x W (33″) x H (39″)
* 221 pounds
* Air Dryer – Includes Activated Alumina desiccant with a 4000 hour life.
Activated Alumina is used in air prepurification (due to it’s high water
and carbon dioxide adsorption capacity) and adsorption of sulphur
compounds.
* Aftercooler (condenser)
* EZ-1-2321 Auto Drain Valve Factory Installed
* Commercial Use: Refer to State & City Codes
* Non-ASME Air Tank
* 1 Year Limited Warranty
* Assembled in USA
DRY AIR SYSTEM MAINTENANCE:
Recommended replacement of 1lb bag of desiccant, located within vertical dry air tower, every 3000-4000 motor/pump running hours (1-2 years/average).
PERIODIC MAINTENANCE REQUIREMENTS:
Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
Part Number 90260
Add-On Options:
8mm PTFE Black Hose Tubing (10 feet long) to connect to Automatic Drain Valve
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 50 Foot Hybrid Air Hose
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
Auto Drain Connectivity (Instructions)
*70/30 Duty Cycle – Click Here For More Information
