Description

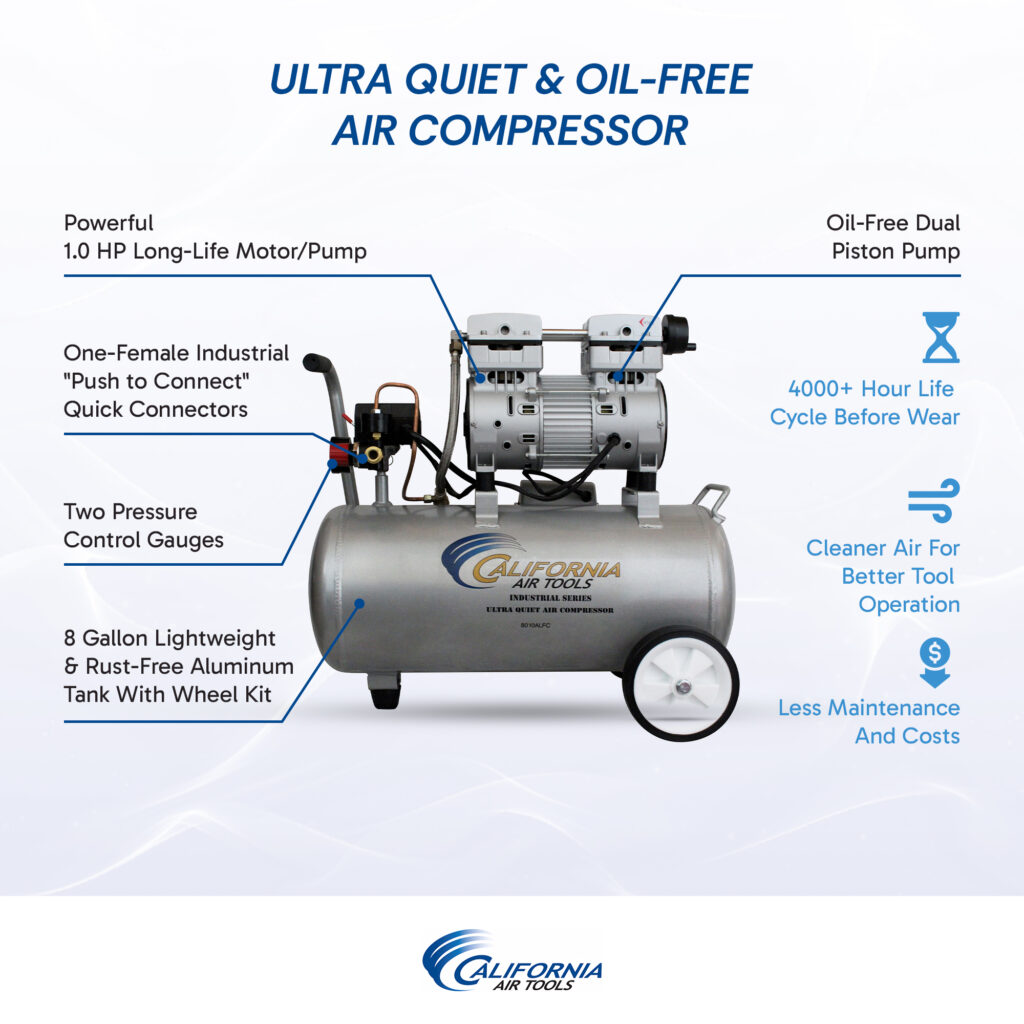

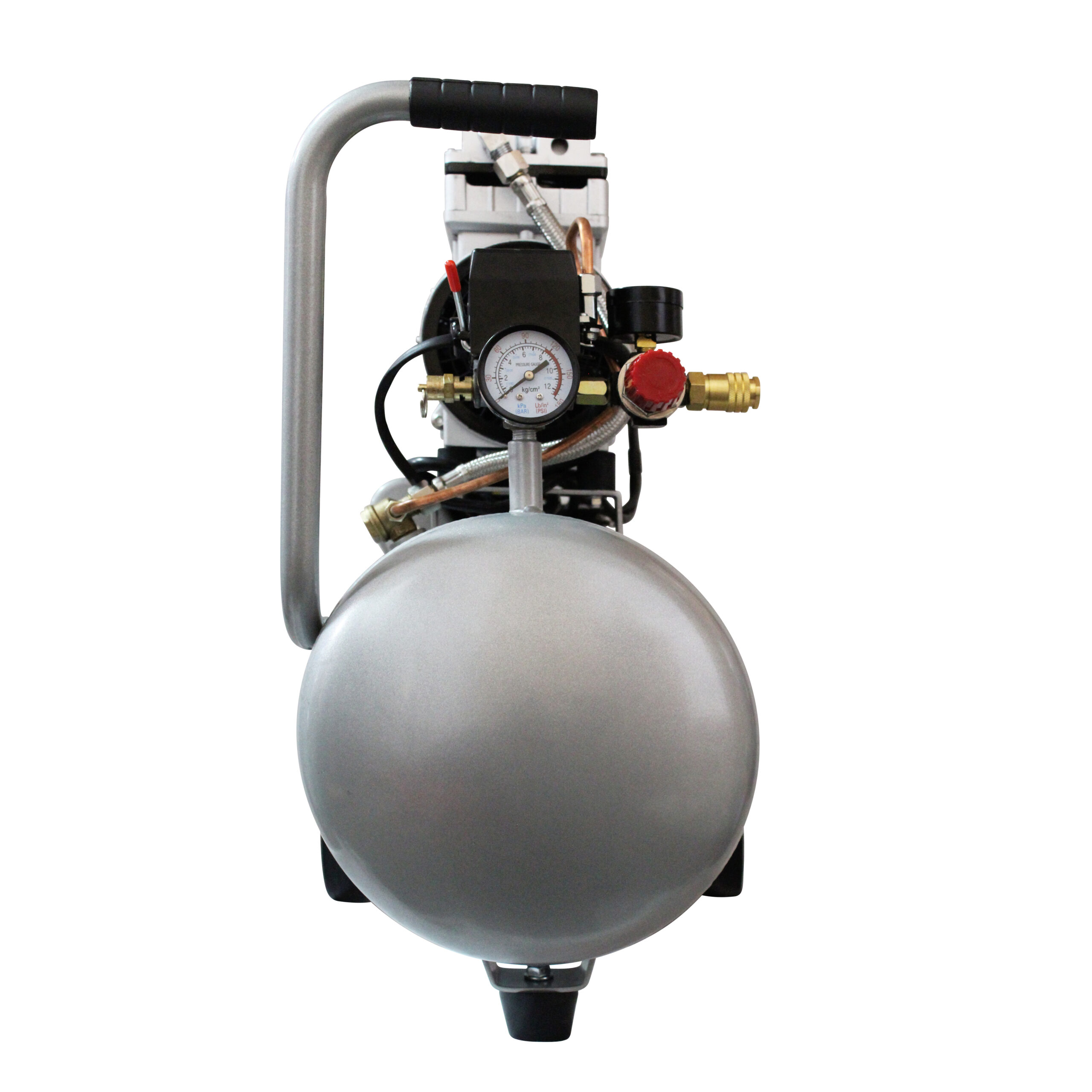

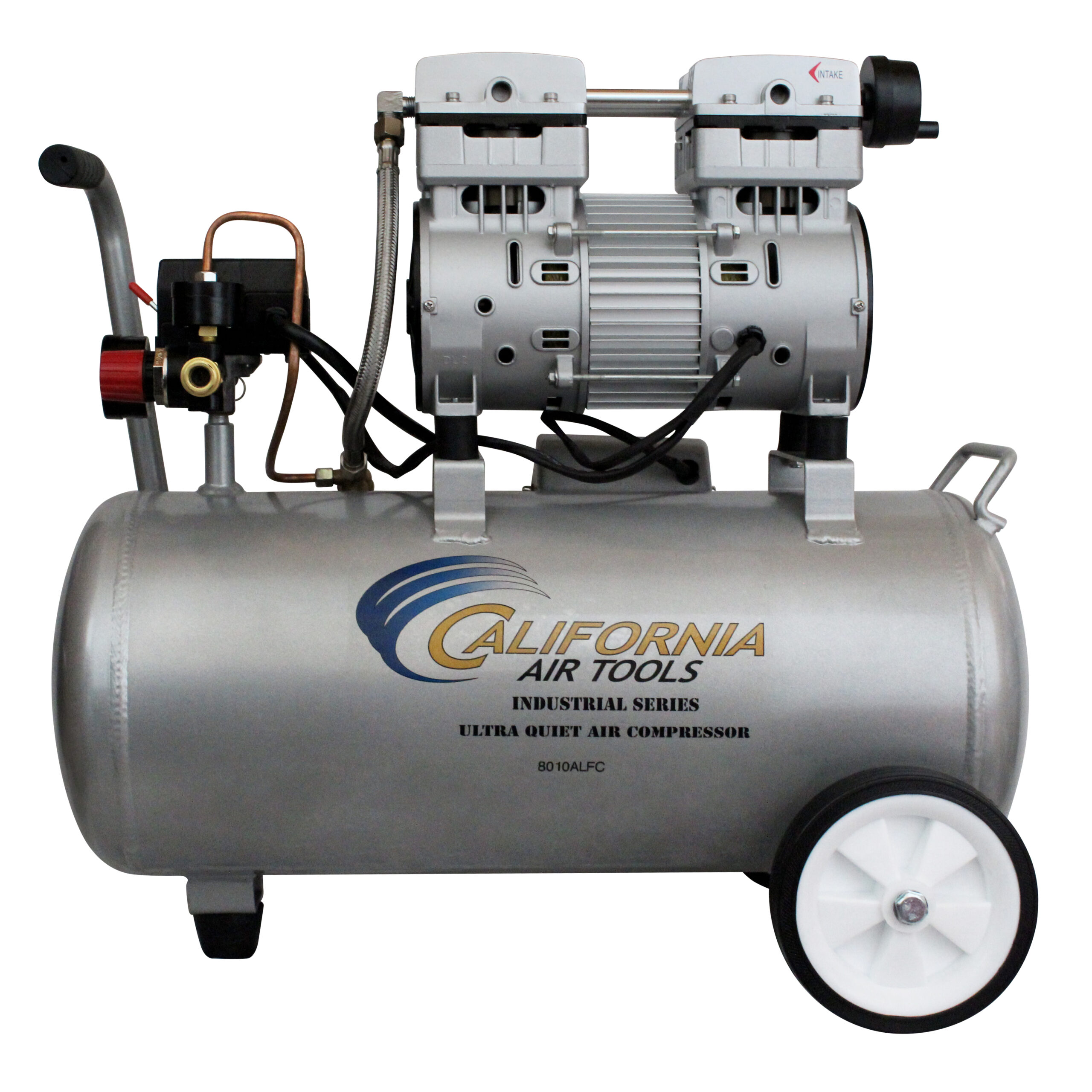

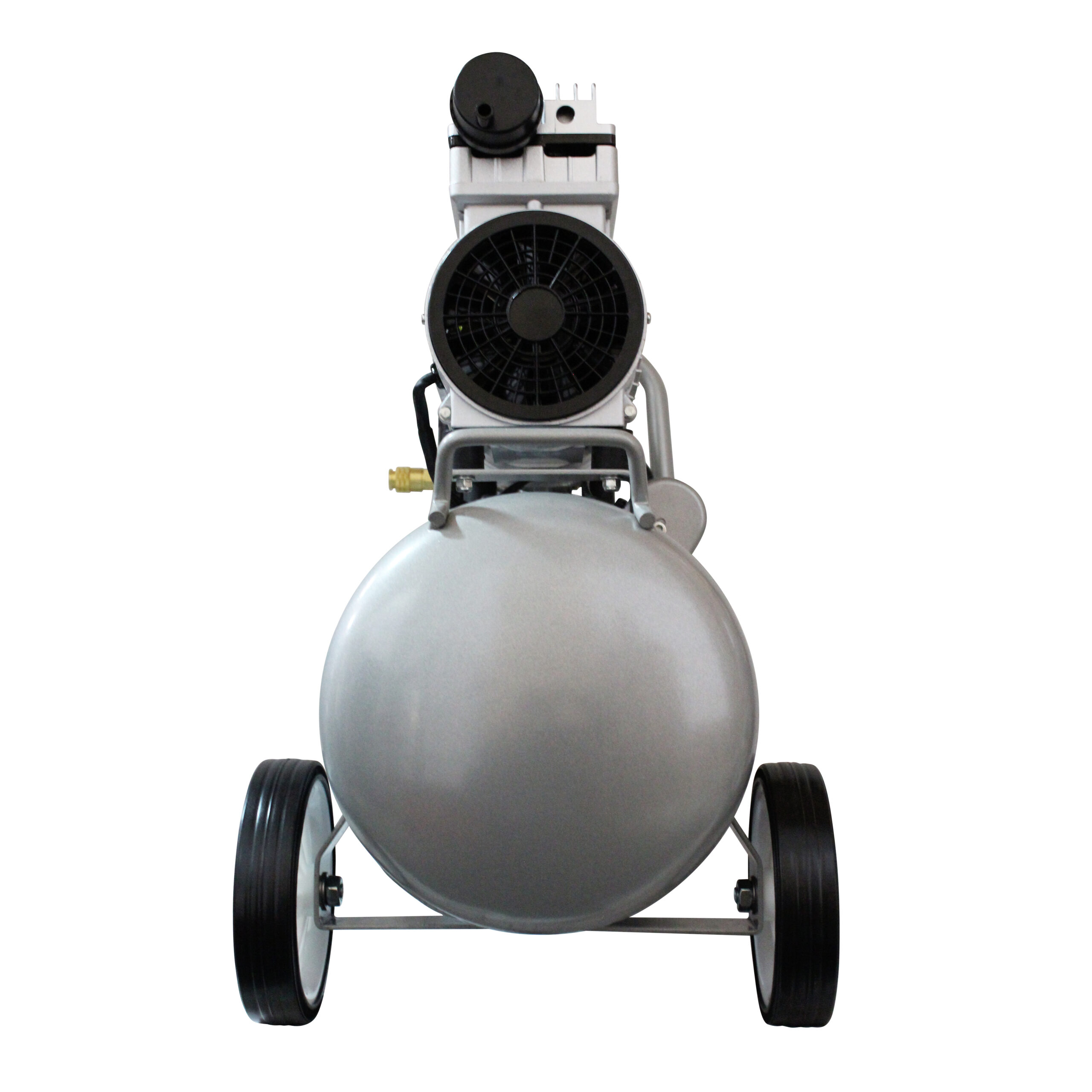

CALIFORNIA AIR TOOLS 8010ALFC Ultra Quiet 1.0 Hp, Oil-Free, Lightweight Aluminum 8-Gallon Air Compressor (Industrial Series)

RUST-FREE ALUMINUM

LONG LIFE MOTOR

1.0  HP (Rated/Running) – 2.0 HP (Peak)

6.0  Gallon Aluminum (Rust-Free) Tank

4.00 CFM @ 40 PSI

3.00 CFM @ 90 PSI

60 dB Noise Level

The CALIFORNIA AIR TOOLS 8010ALFC Ultra Quiet 1.0 Hp & Oil-Free 8-Gallon Air Compressor is designed to be one of the quietest air compressors in the industry having only 60 decibels of sound.



The powerful 1.0 HP motor (MP100LF) operates at only 1400 RPM creating less noise and less wear.



The MP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*



The MP100LF motor/pump is tested for a minimum life of 4000 hours before wear, 30% longer than the MP100 motor/pump (with an average life of upwards of 6000 hours).



The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The Dual Piston Pump System produces 25% more air compared to other 1.0 Hp air compressor motors.



The large 8.0 Gallon Aluminum Air Tank is Lightweight and Rust-Free (40 lbs) with wheel kit that makes it very easy to transport.



This air compressor is ideal for anyone working inside where noise is a major issue.



---

---

Features:

* Ultra Quiet  –  Only 60  decibels

* Oil-Free Pump – Cleaner air for better tool operation.

Less maintenance and Costs.

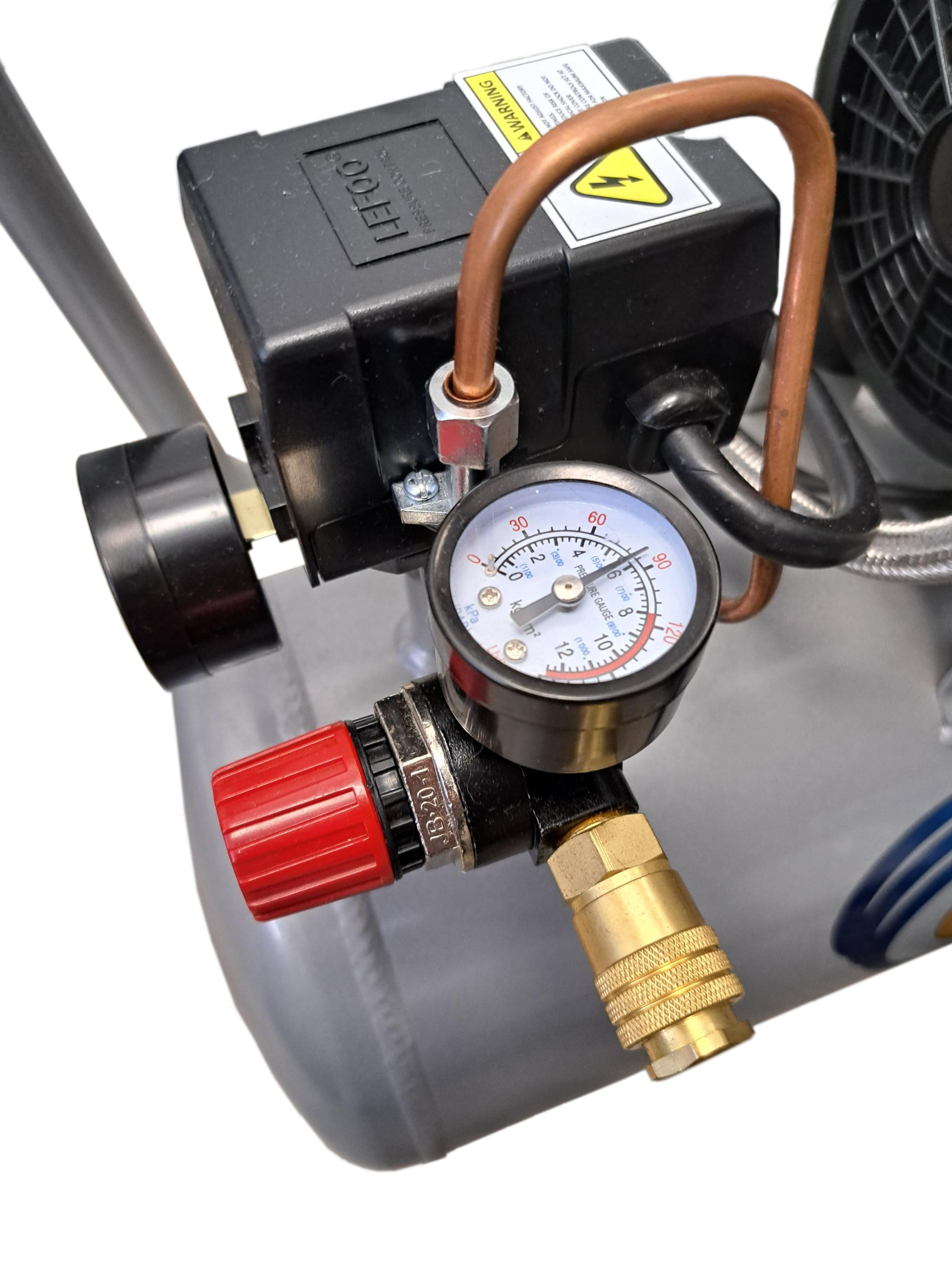

* Two pressure control gauges

* One – Female industrial “Push to Connect” quick connector

* Thermal Overload Protector

* 120 PSI Maximum Pressure

* 90 PSI Default Pressure Output from Regulator (adjustable)

* 110v / 60 hz – Generator 2500 (running) Watts Min.

* Low Amp Draw – 7.6 Amps

* Time to fill tank from empty to full – 139 Seconds

* Recovery time from 90 PSI to 120 PSI – 41 Seconds

* Duty Cycle – 70/30*

* Maximum continuous running 30-60 min. (Depending PSI & CFM)

* Less heat which dissipates more efficiently

* 8.0  Gal. Aluminum Air Tank With Wheel Kit

Only 40 pounds and easy to move around.

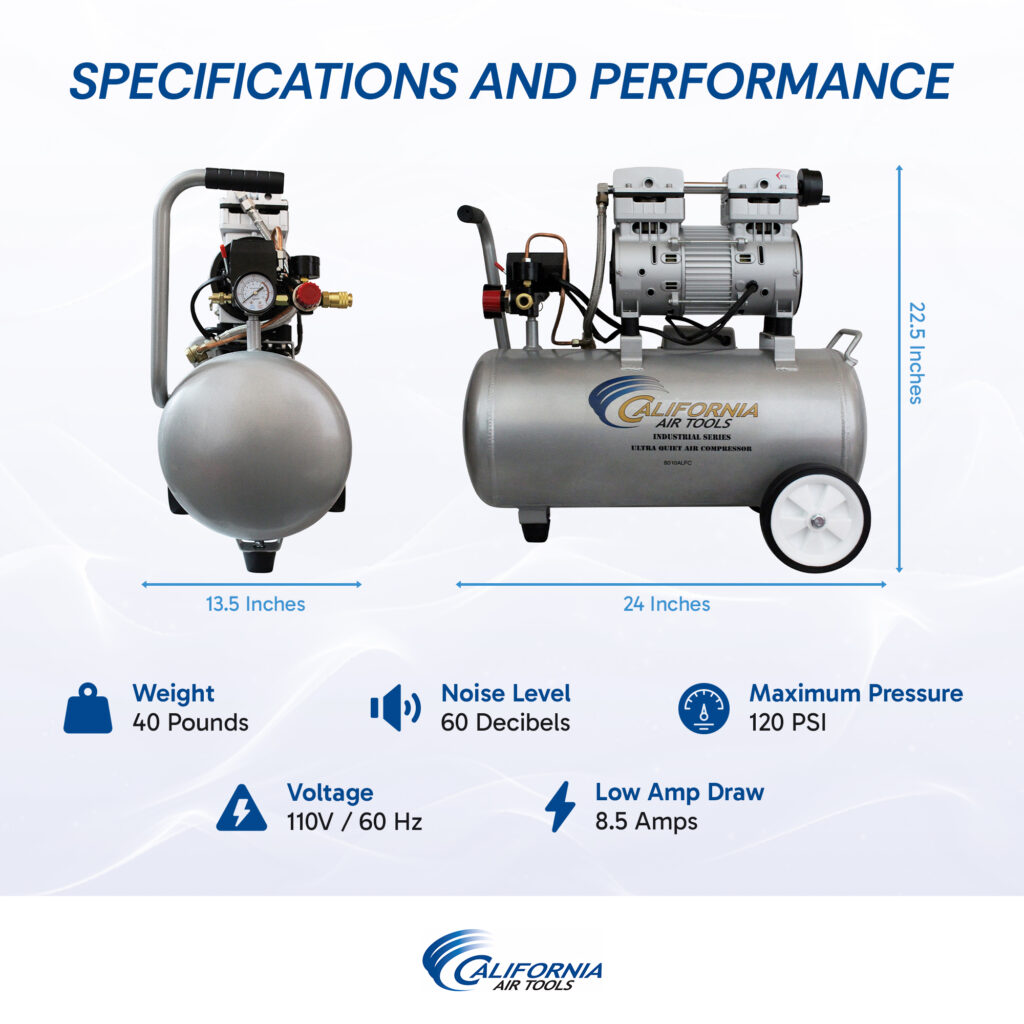

* L (24″) x W/D (13.5″) x H (22.5″)

* 40.00 lbs

* 1 Year Limited Warranty

* Comes complete with Wheel Kit & Air Filter

* Commercial Use: Refer to State & City Codes



---

PERIODIC MAINTENANCE REQUIREMENTS:

Replace 1 Hp air filter (attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.

---

Add-On Options:

16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)

California Air Tools Hybrider Flex 1/4in 50 Foot Hybrid Air Hose

317 Water (moisture) & Oil Separator Air Filter 1/4 NPT

EZ2321ADL Automatic Drain Valve Long Extension Kit (110v 60 hz)

---

California Air Tools 8010ALFC Owners Manual 6-23

SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor

SUPPORT VIDEO – How to Connect Air Hose to Air Compressor

---

*70/30 Duty Cycle – Click Here For More Information
