Description

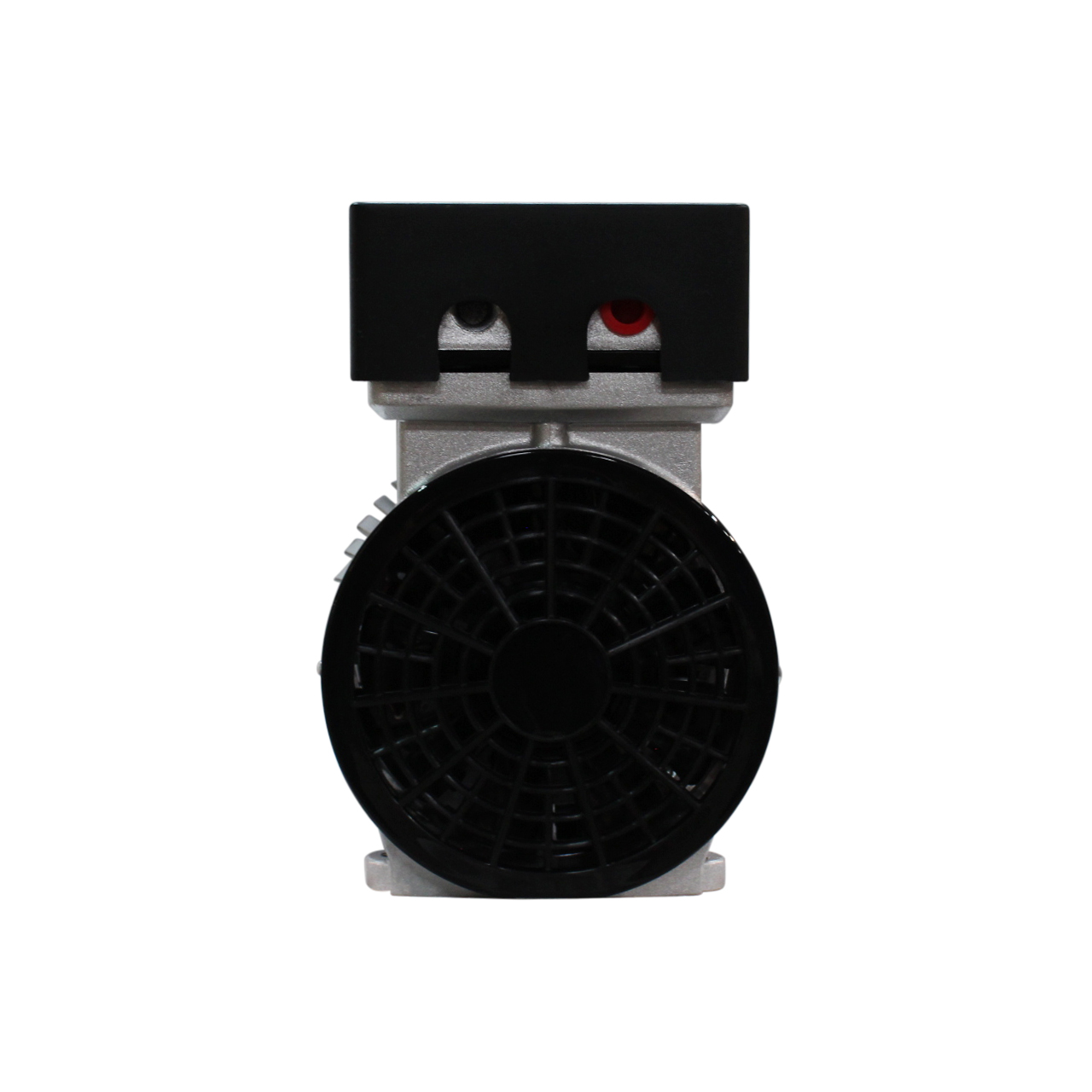

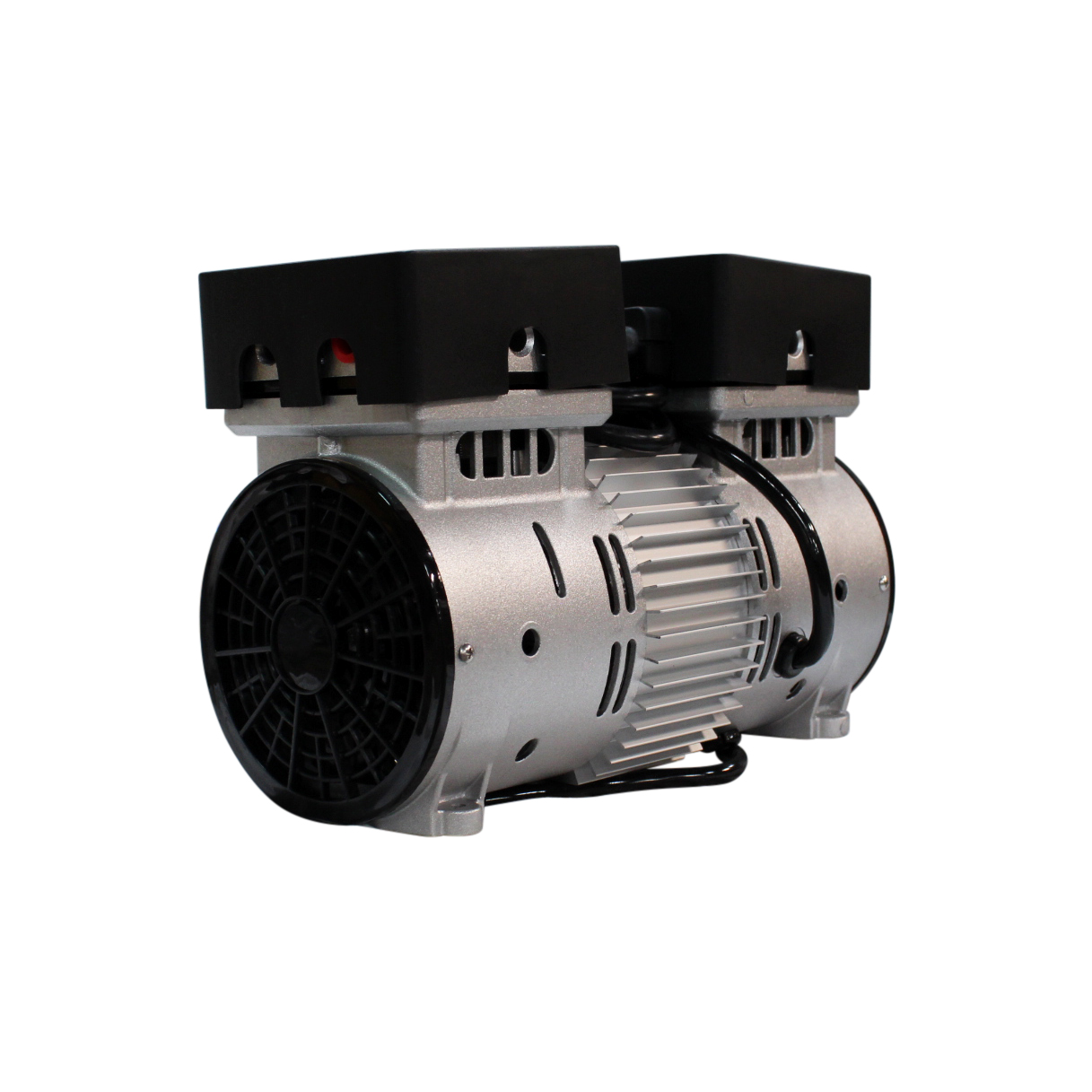

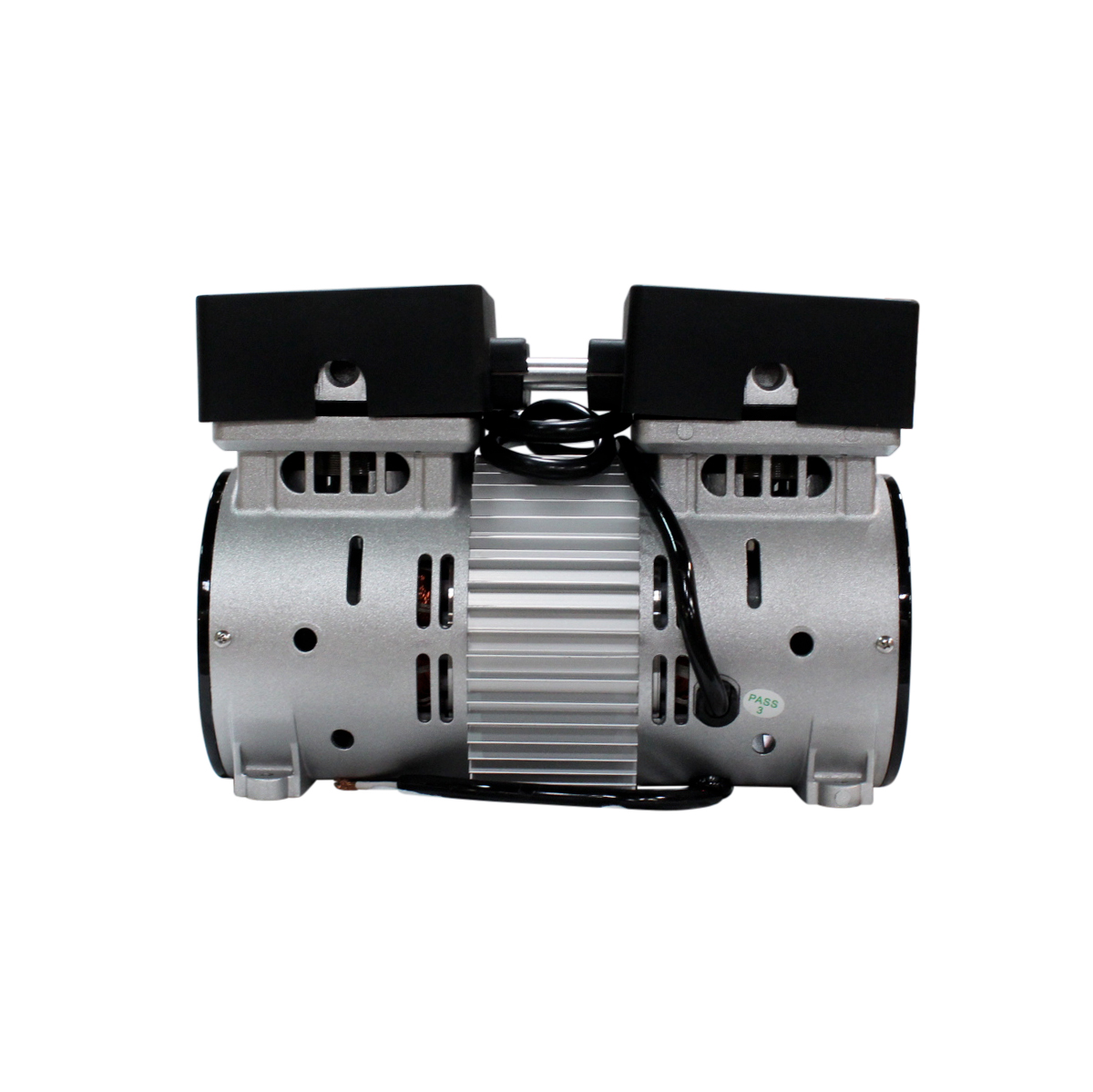

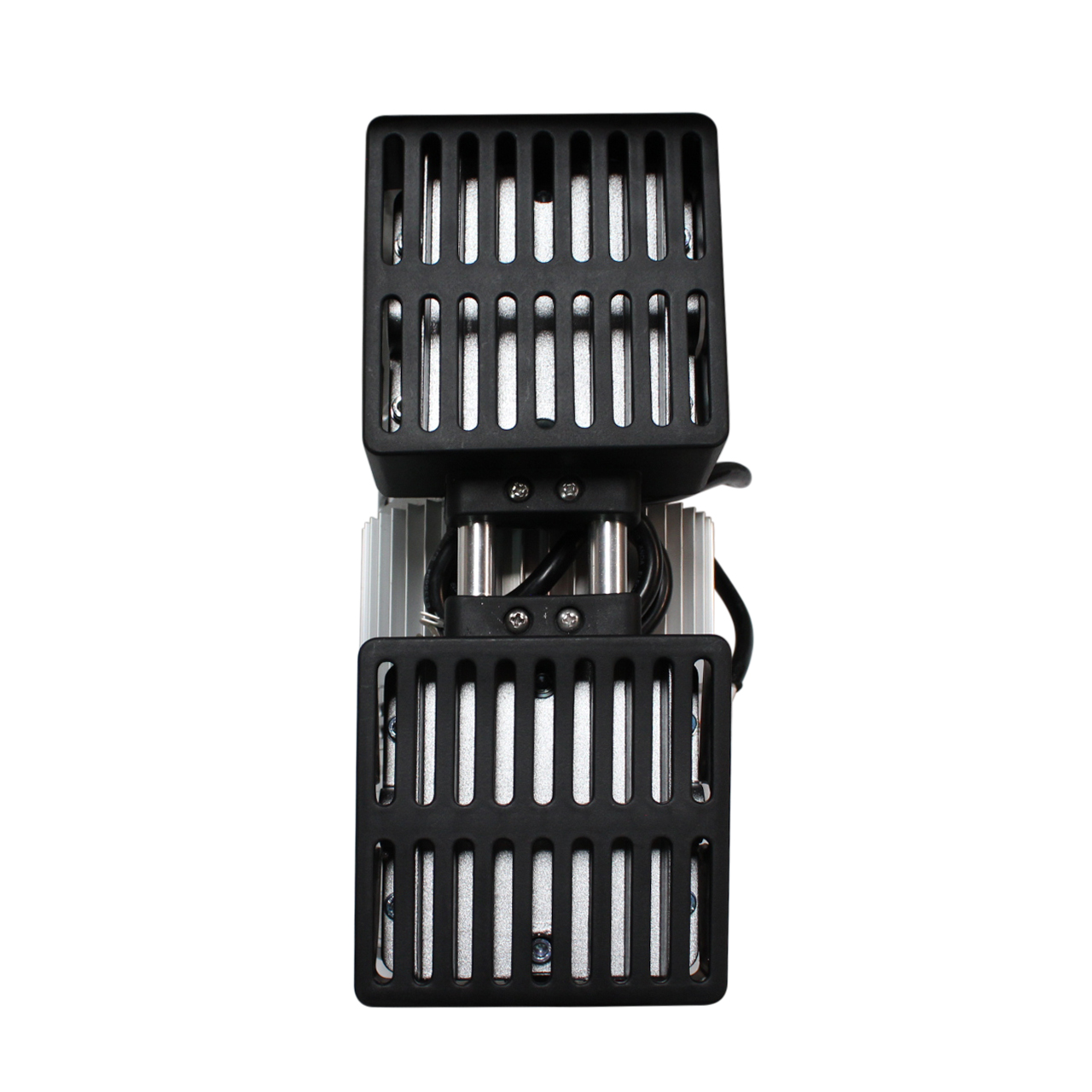

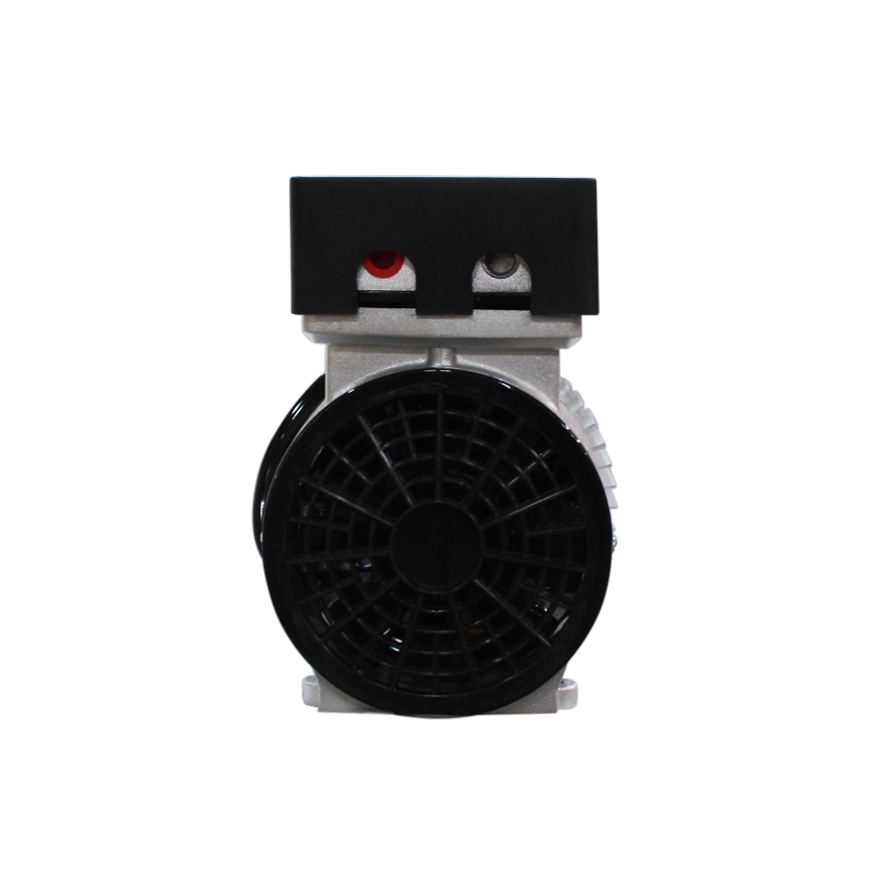

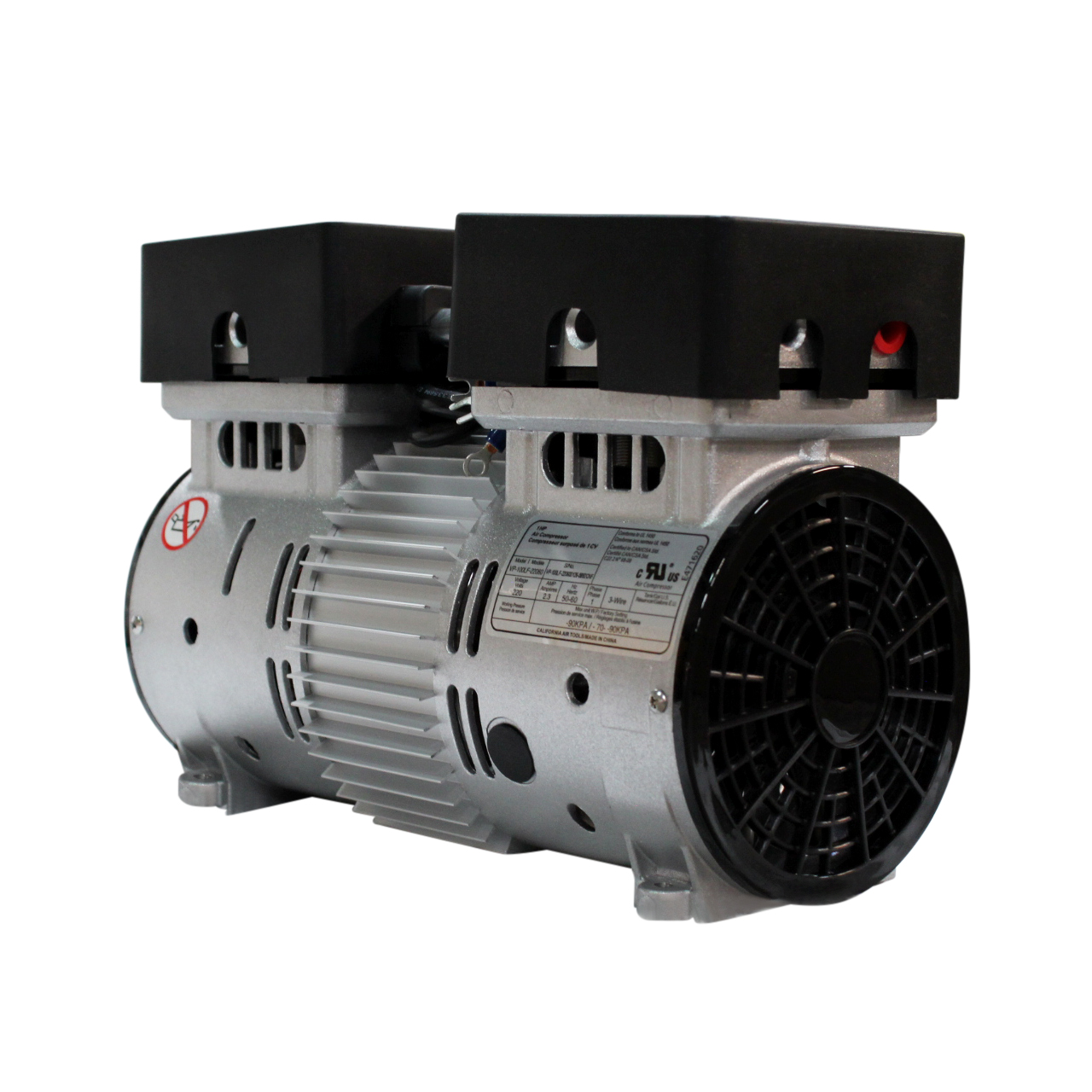

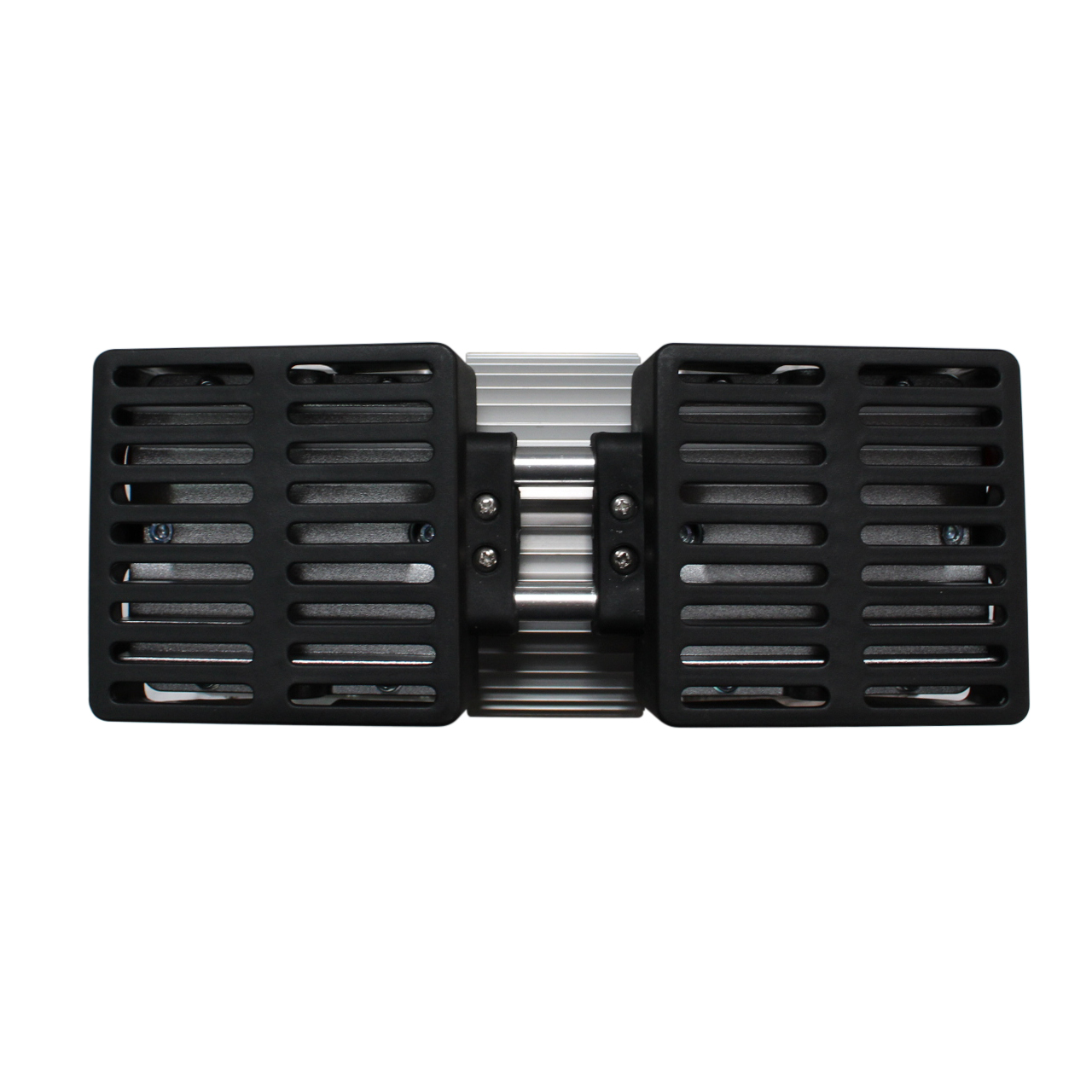

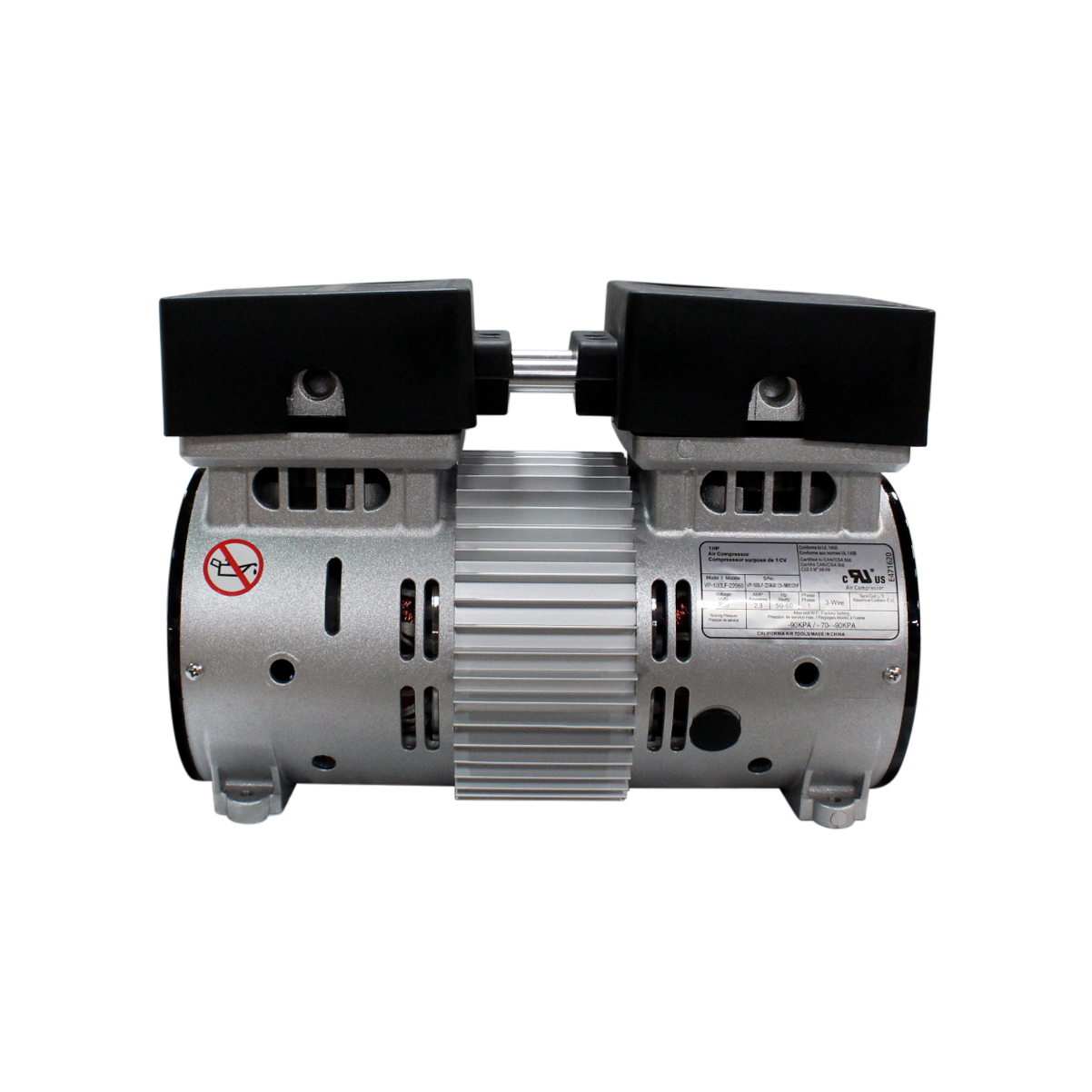

CALIFORNIA AIR TOOLS VP-100LF-22060 1.0 Hp Ultra Quiet & Oil-Free Vacuum Pump/Motor (220v 60hz)
TWO-STAGE VACUUM PUMP
DISPLACEMENT: 2.2 CFM OPEN FLOW, 28 IN. HG MAX VACUUM
220VAC 60HZ 1-PHASE
The CALIFORNIA AIR TOOLS VP-100LF-22060 Ultra Quiet & Oil-Free Vacuum Pump/Motor is designed to be one of the quietest in the industry having only 60 decibels of sound.
The VP-100LF-22060 Ultra Quiet motor pump has been designed to increase duty cycle and allow for longer continuous run times.
These motors are engineered to dissipate the heat better which allows for a cooler operation reducing wear and increasing life before service.
The VP-100LF-22060 motor has a valve plate design made with Swedish reed valves which improves air flow, reduces wear and decrease the sound level.
The 1.0 HP motor operates at only 1680 RPM creating less noise and less wear.
The Oil-Free Dual Piston Vacuum Pump System is engineered for high performance and durability.
The VP-100LF-22060 pump/motor has a Oil-Free Dual Piston pump designed to have a life cycle of 3000 Plus hours before repair.
FEATURES:
* Ultra Quiet – Only 60 decibels
* Oil-Free Vacuum Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Two-Stage Vacuum Pump
* Thermal Overload Protector
* 2.2 CFM Open Flow, 28 Hg Maximum Vacuum
* Maximum Vacuum Degree MPa: -0.098 MPa
* Air Input displacement m3/h: ≥4.1 m3/h @0MPa
* Air Output Port: 1/4″ NPT
* Air Input Port: 1/4″ NPT (with 1.0 Hp Air Filter attached)
* Duty Cycle – 70/30
* Maximum continuous running 45 min. (Depending PSI & Hg CFM Flow)
* 220v / 60 hz / 1-Phase
* Low Amp Draw – 7.6 Amps
* Dedicated 15 amp outlet -14 gauge 25ft cord – Min. 2500 Watt Generator
* 22 pounds

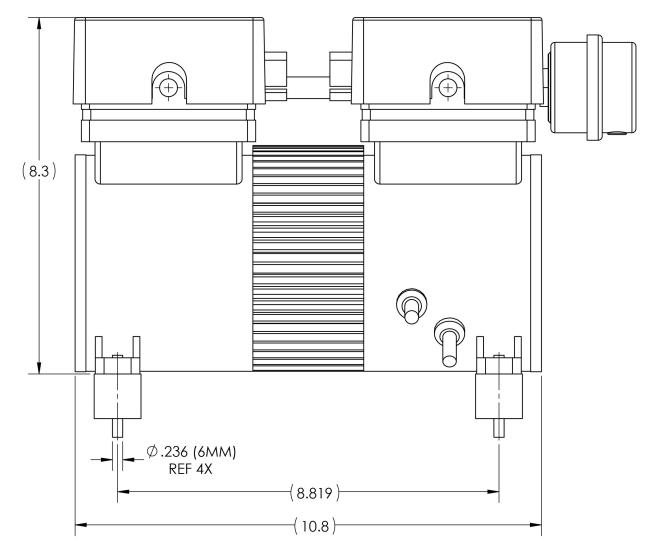

* L (13″) x W (4.75″) x H (8.3″)

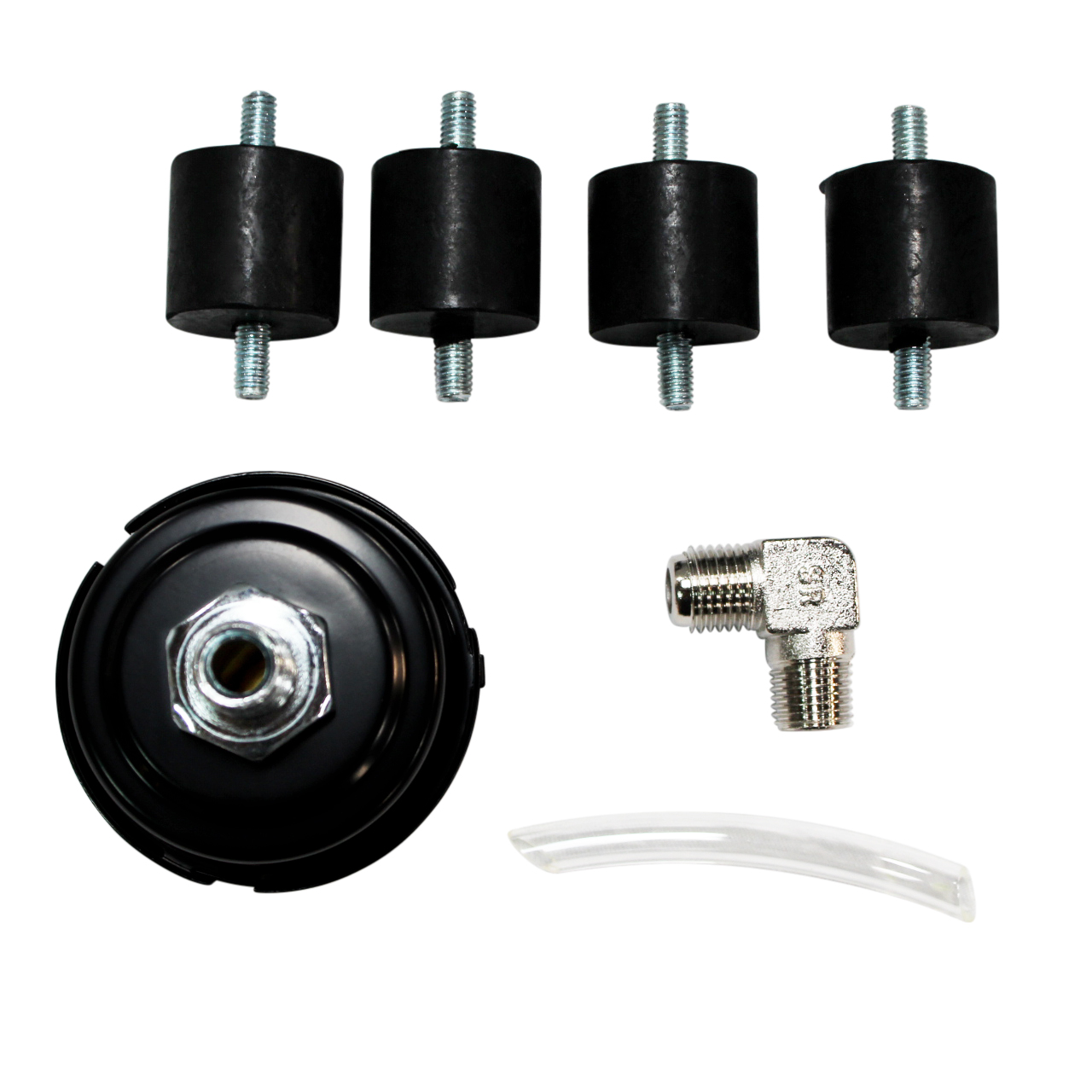

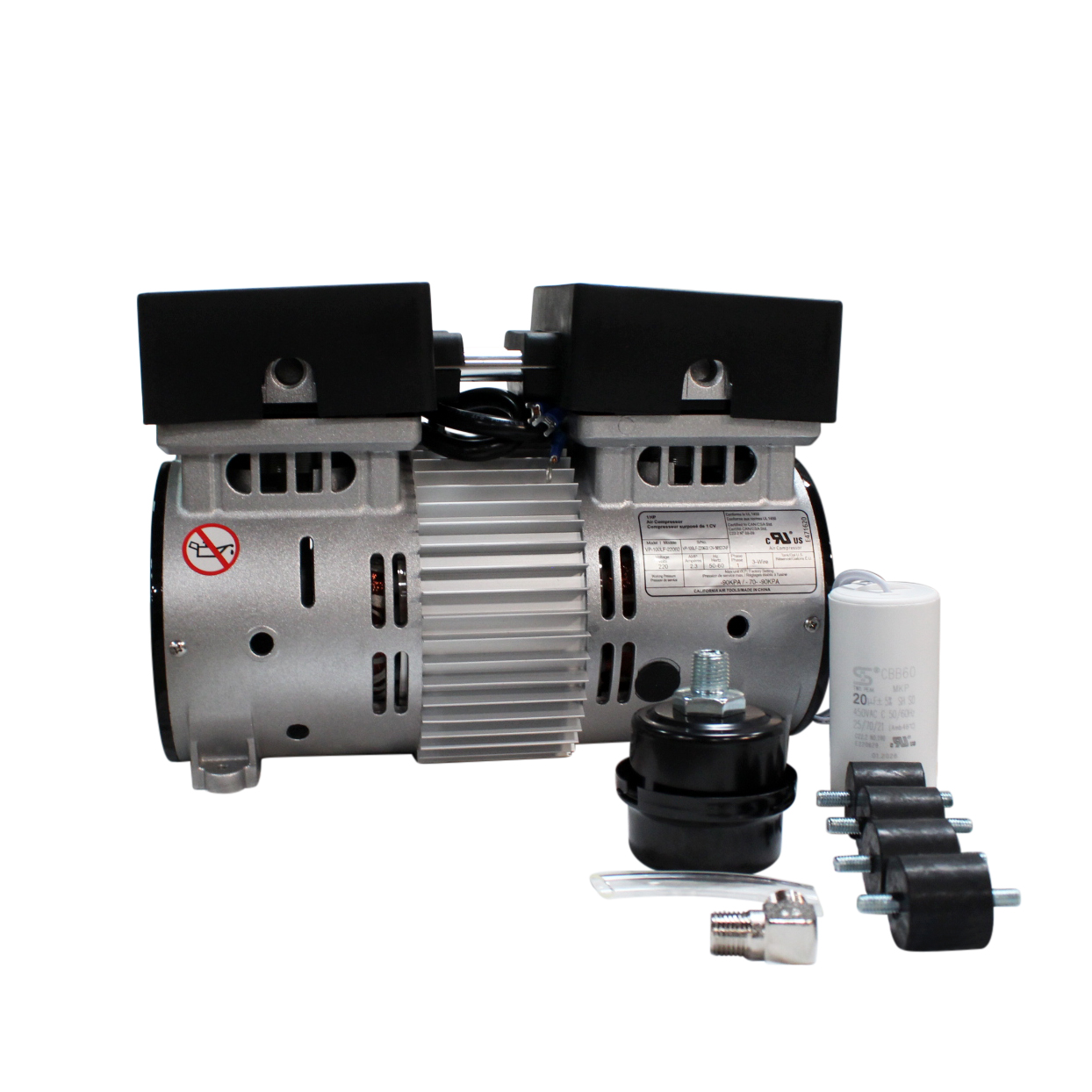

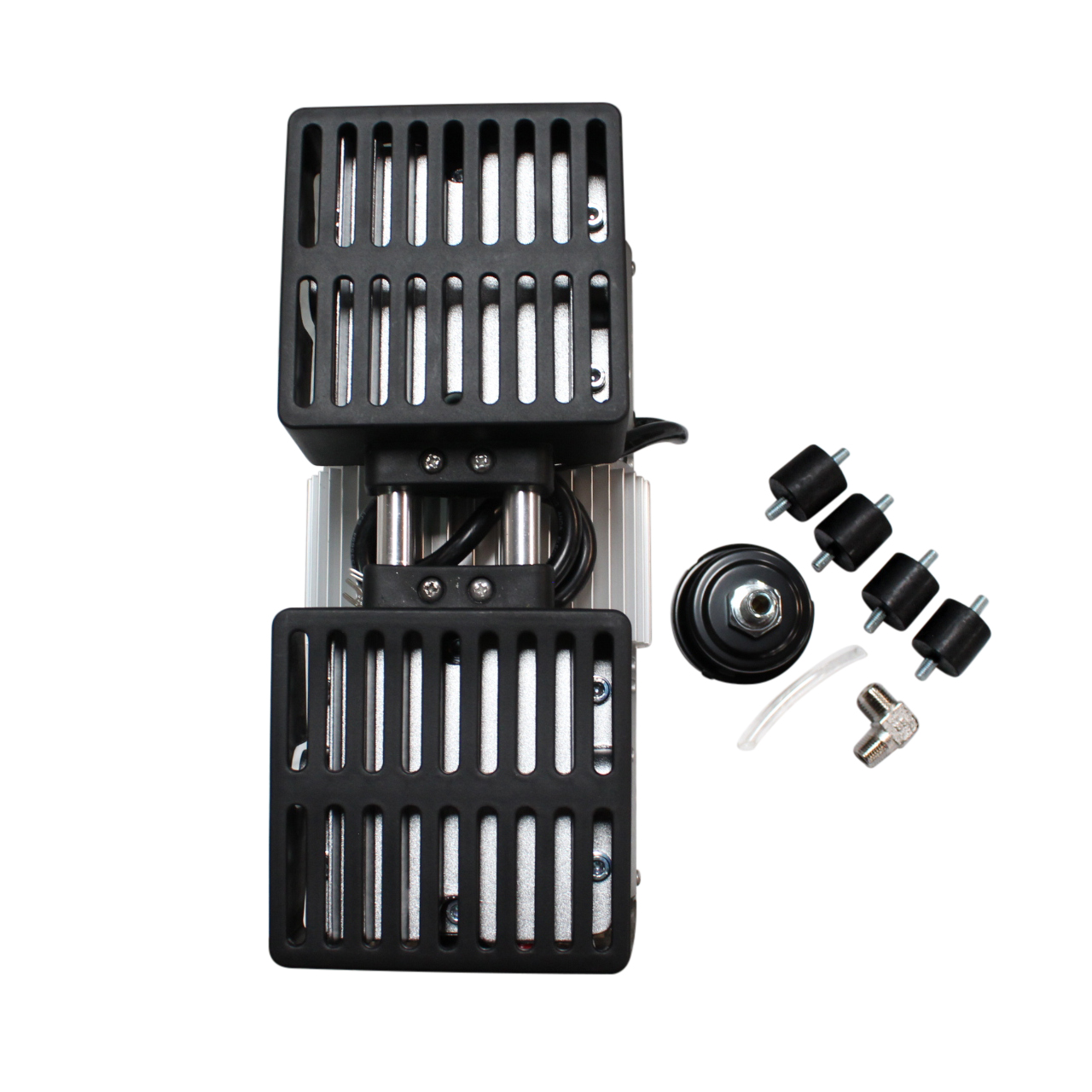

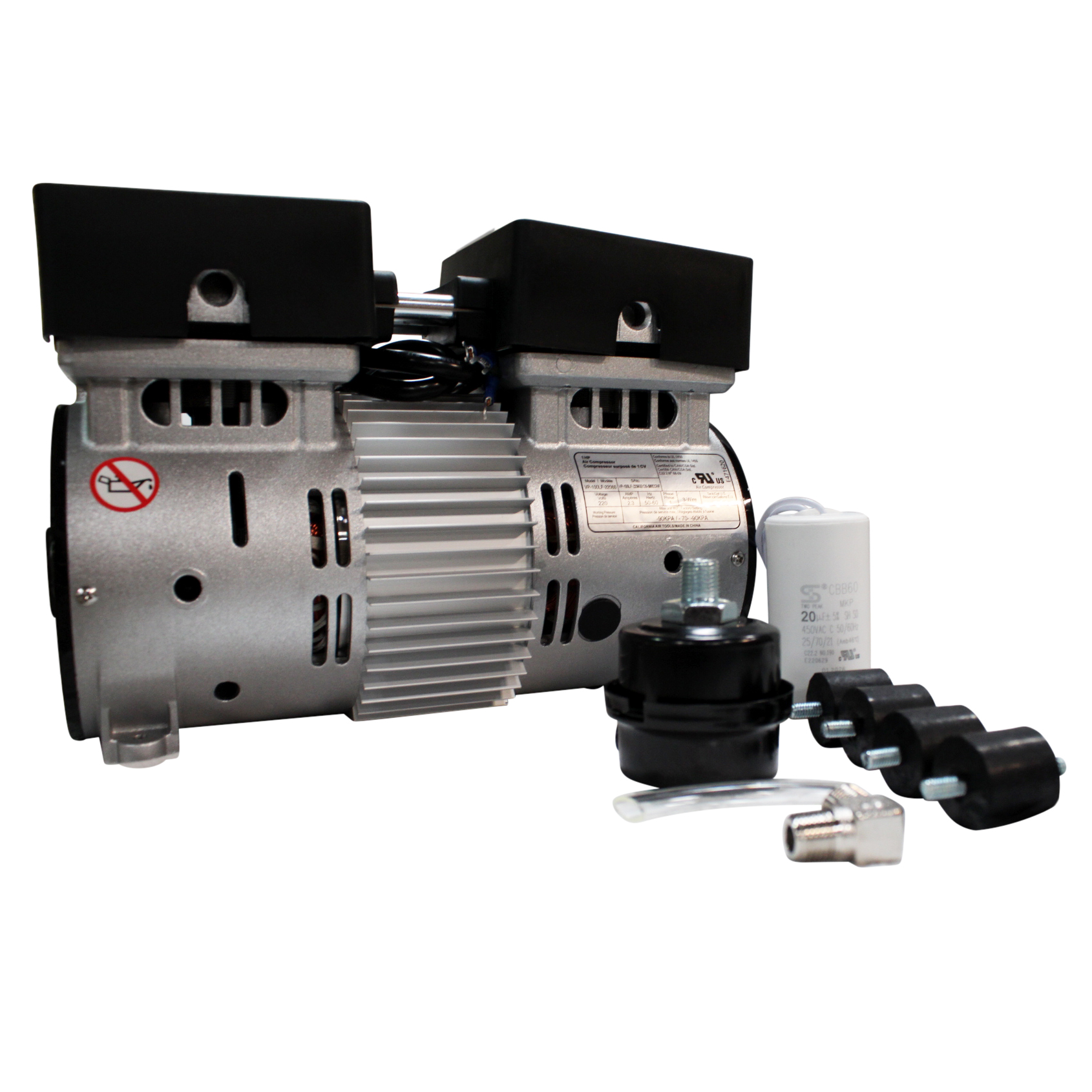

* Comes complete with:
(1) 20uF Capacitor, 1.0 Hp Air Filter and (4) Shock Struts
NOTE: 20uF start capacitor
* CSA/UL Certified
* 1 Year Limited Warranty

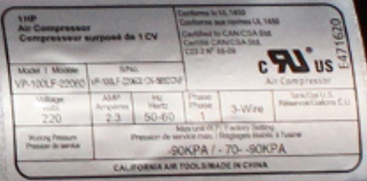

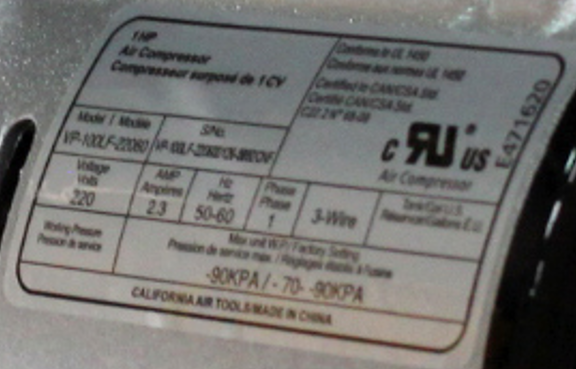

VP-100LF 22060 – Product Specifications
NOTE: This is a replacement vacuum motor-pump. Unloader and/or bleeder valve may be required for installation.
