Description

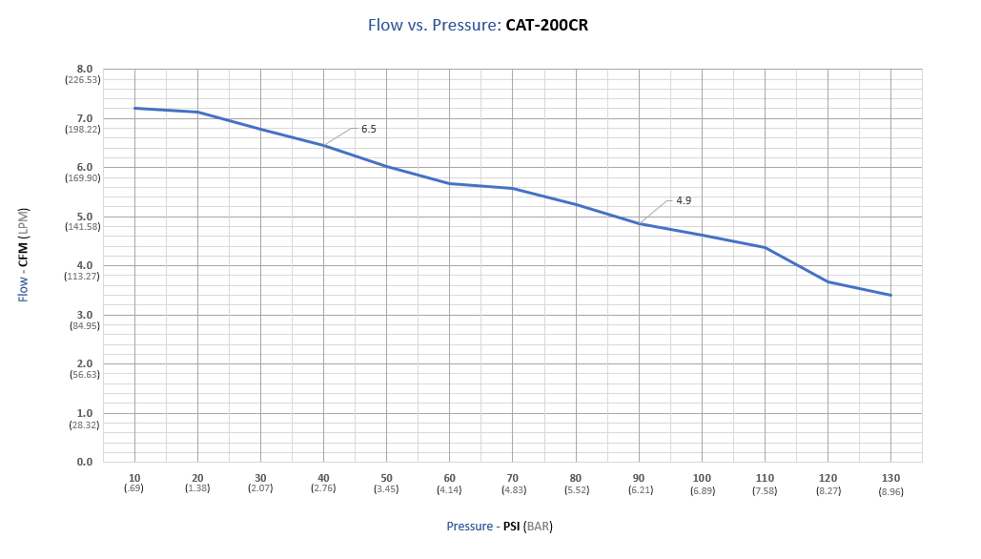

6.50 CFM @ 40 PSI

5.00 CFM @ 90 PSI

125 Max PSI

110 Volts / 60 Hertz / Single Phase

77 Decibels

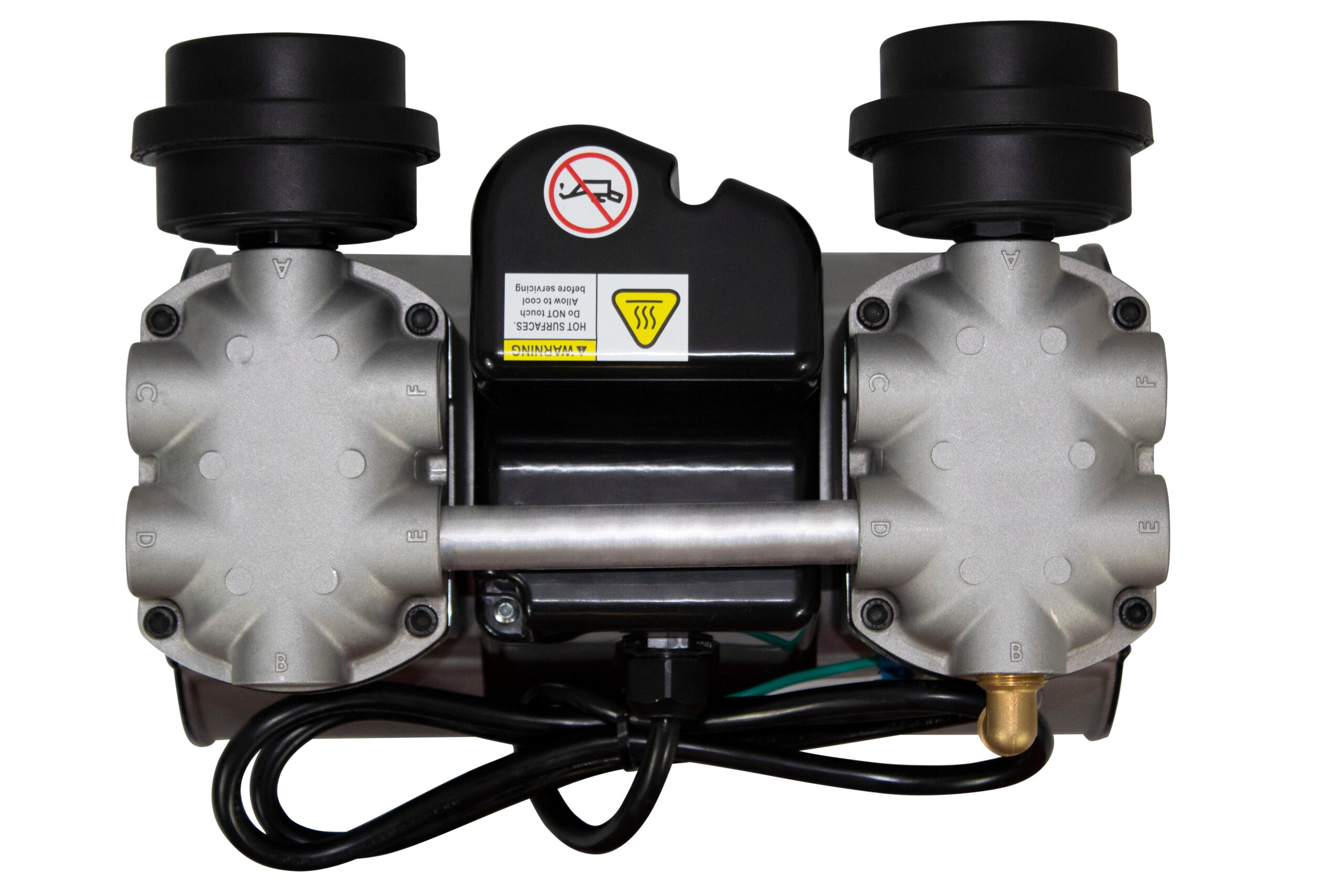

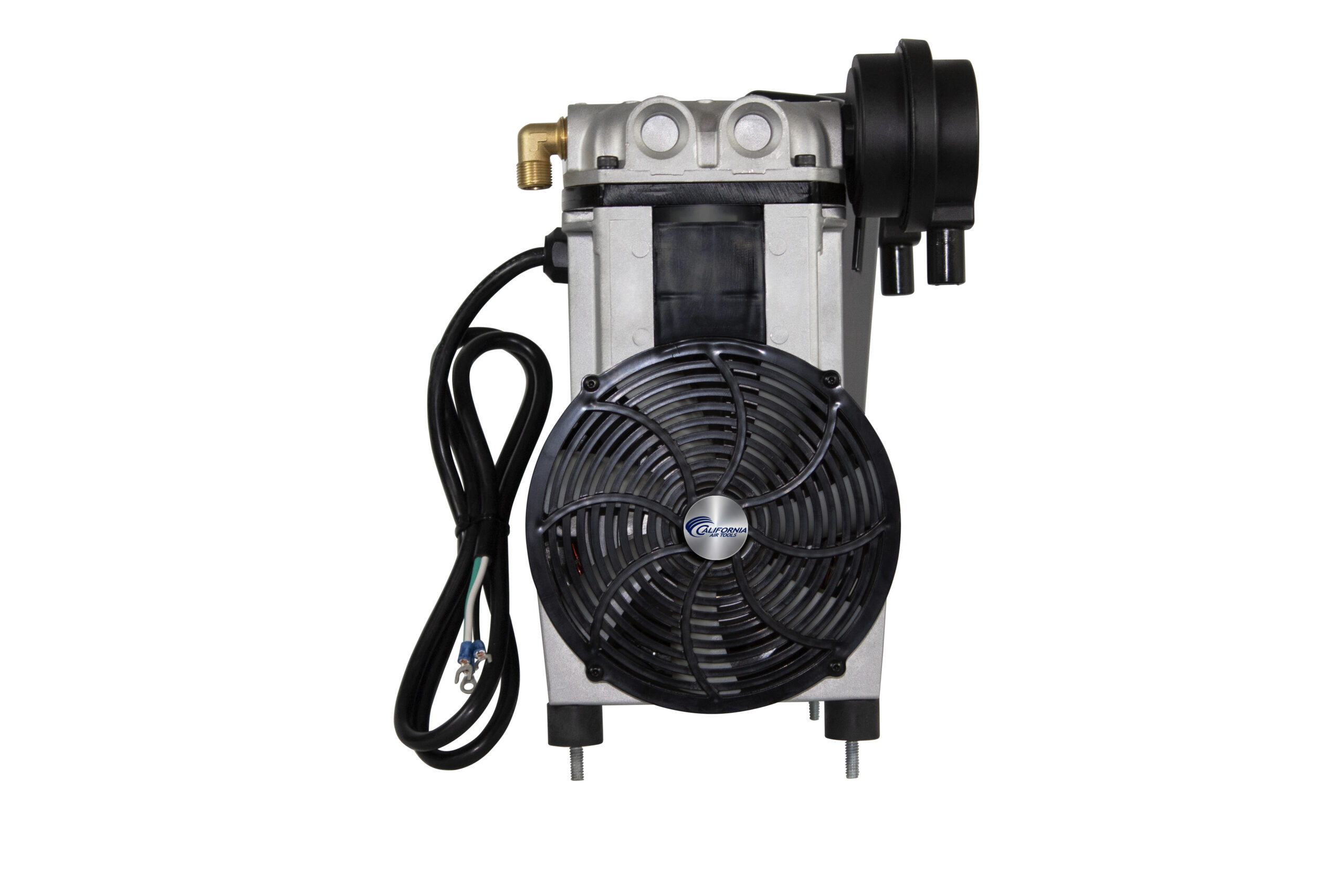

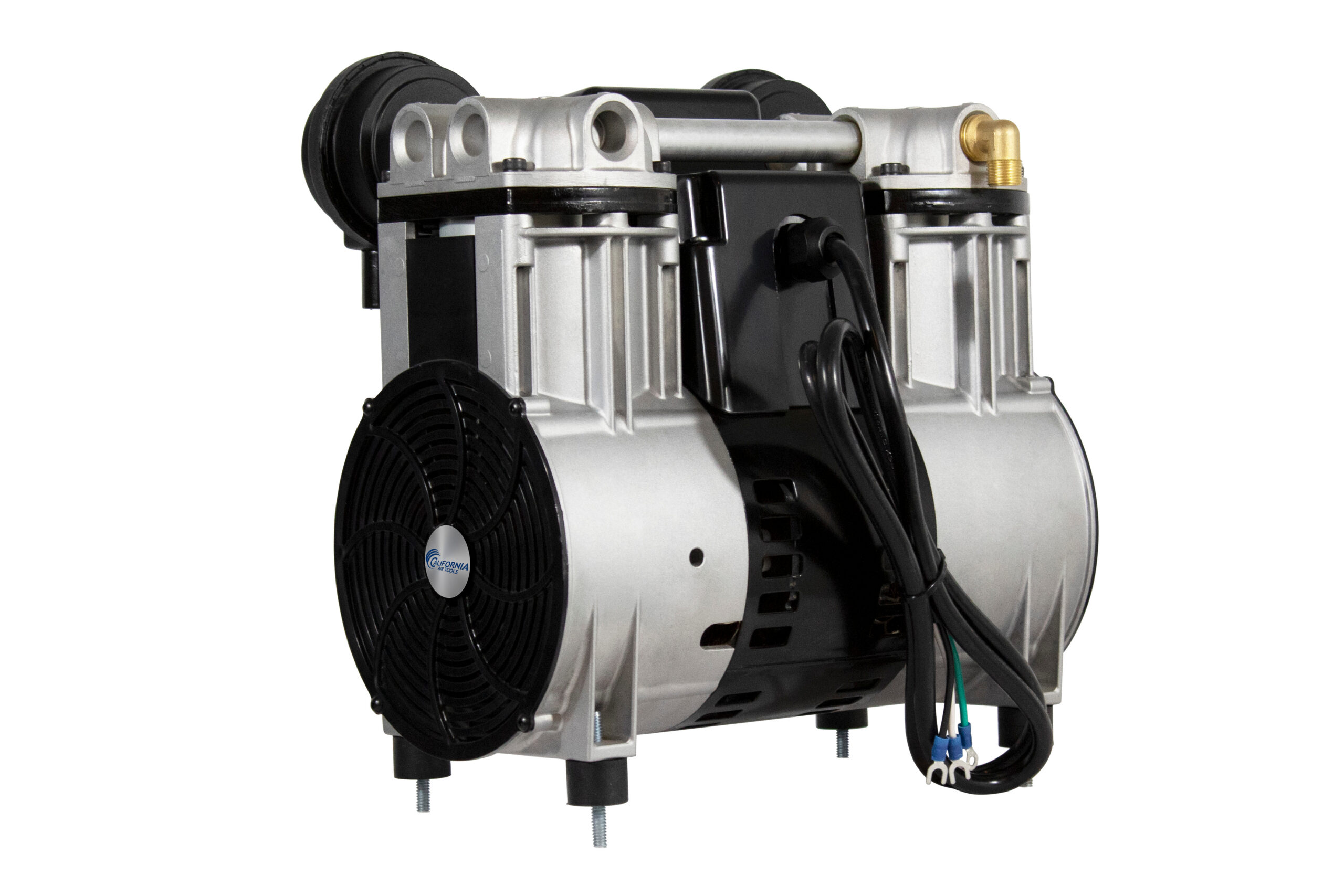

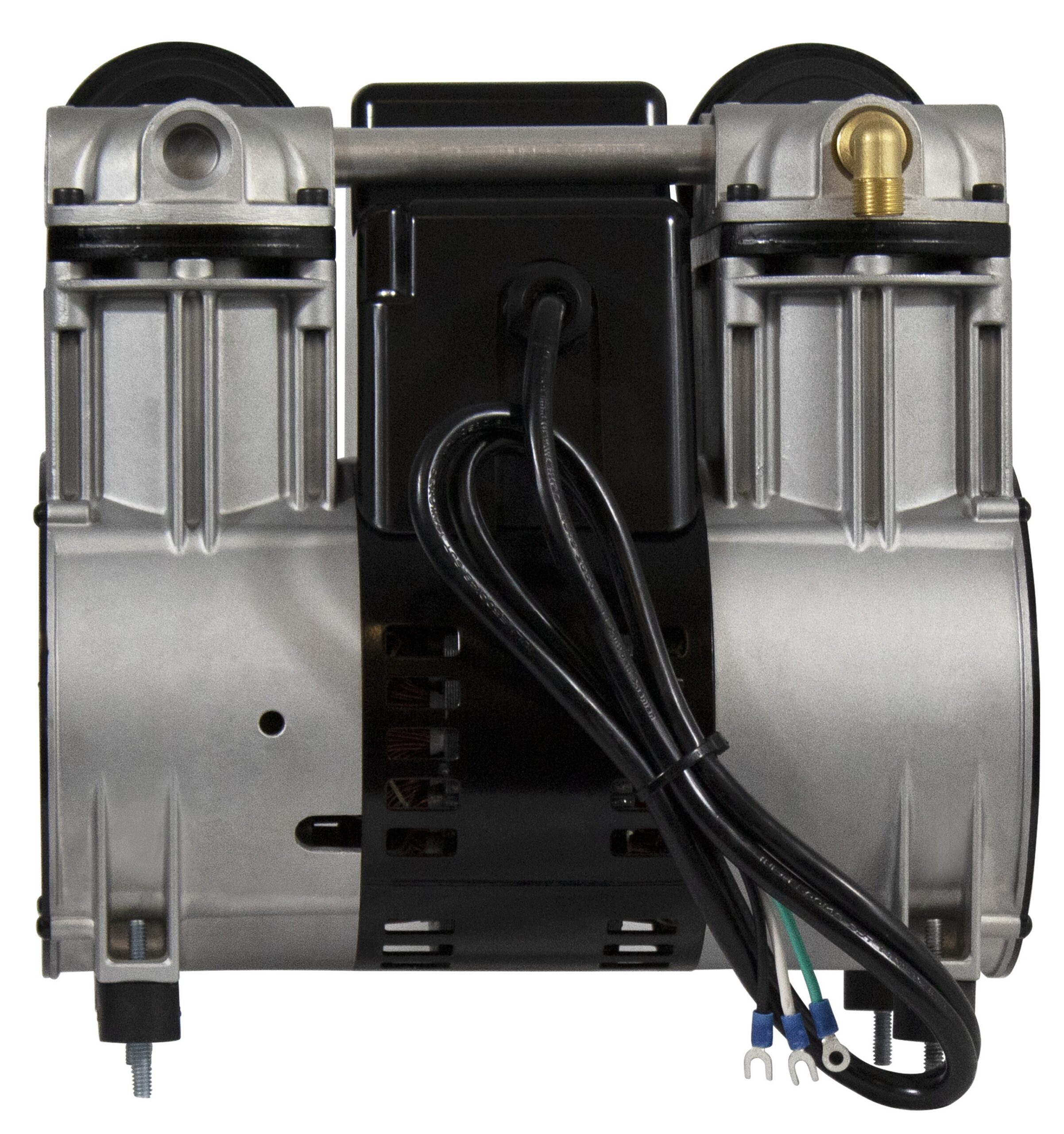

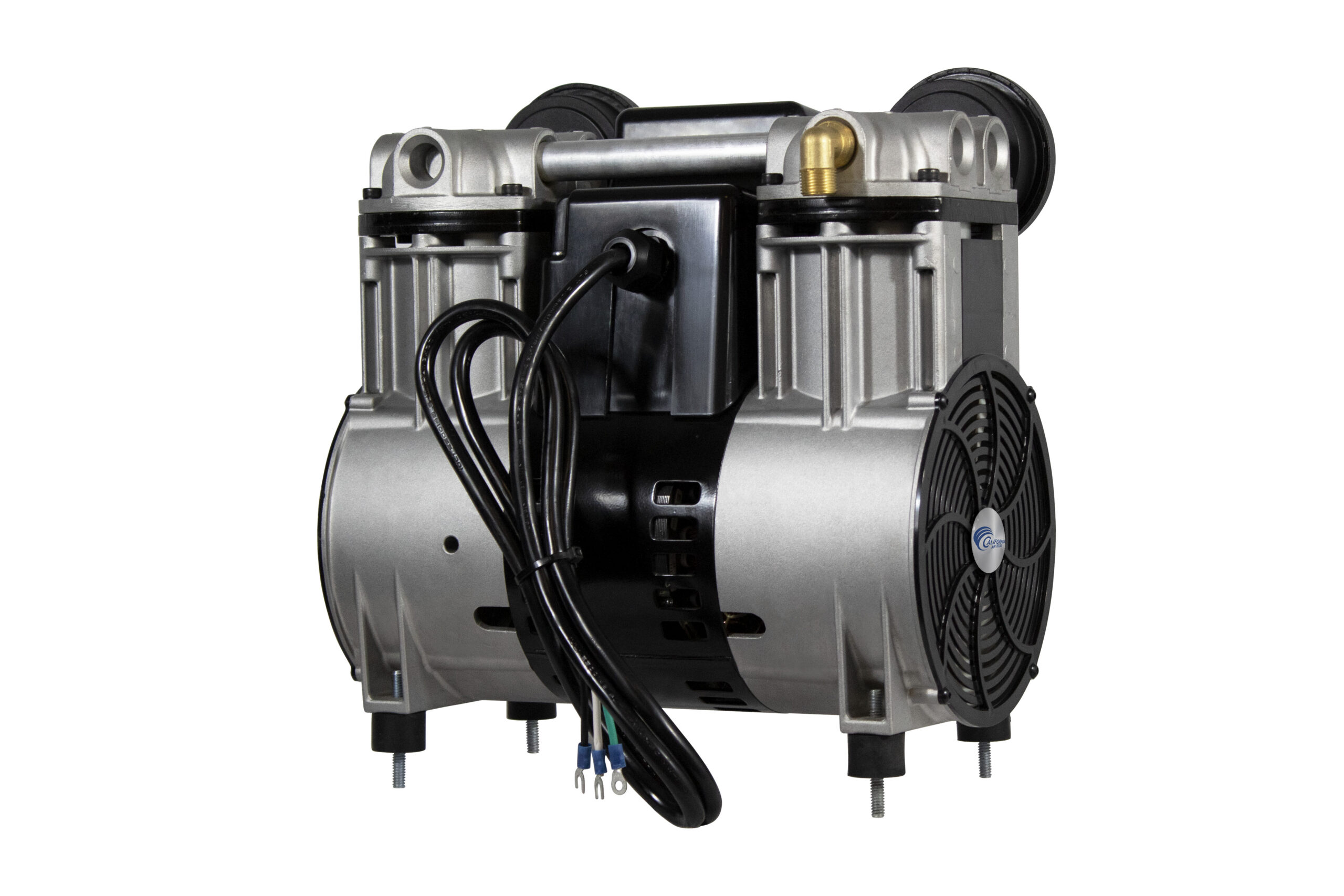

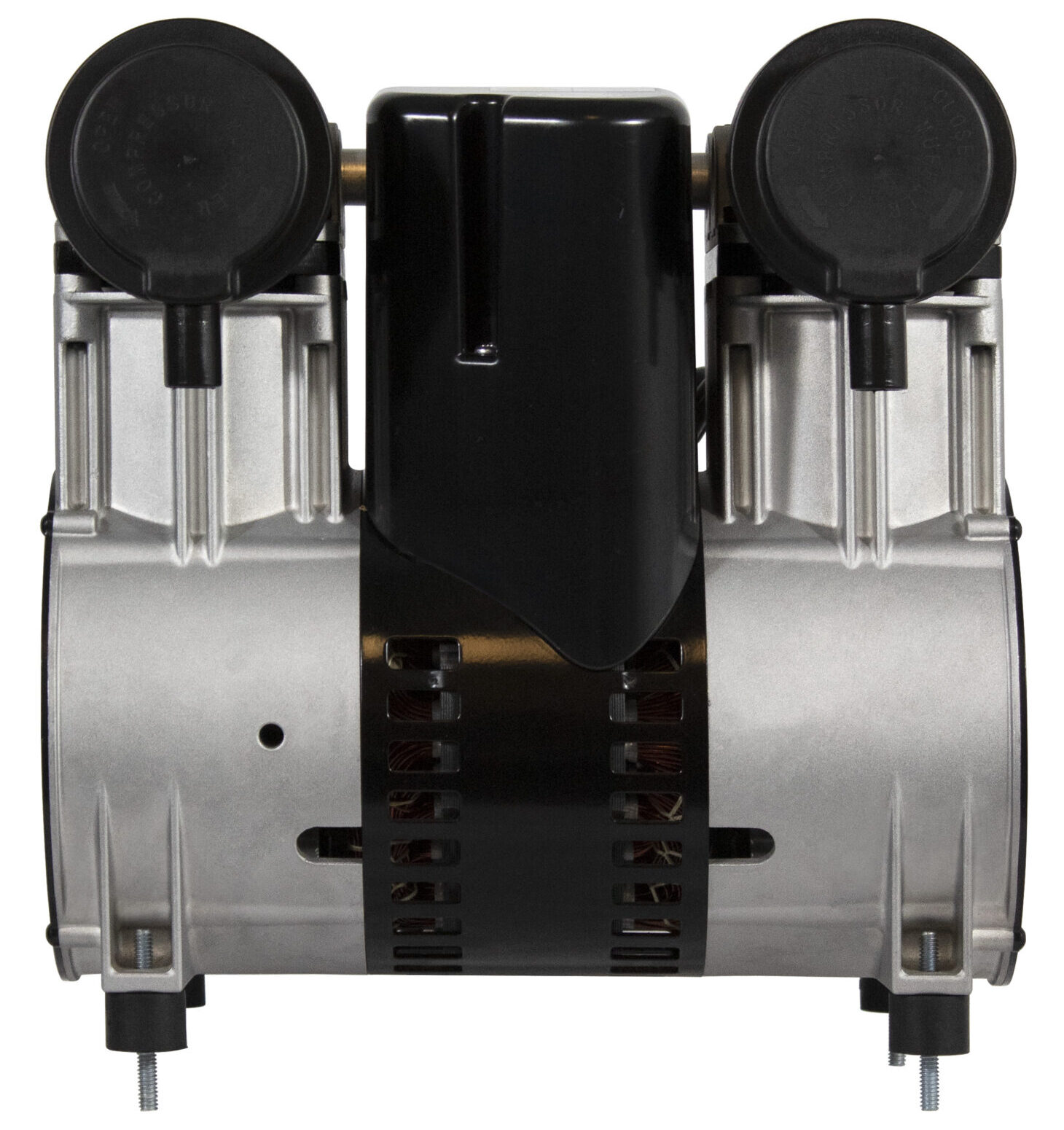

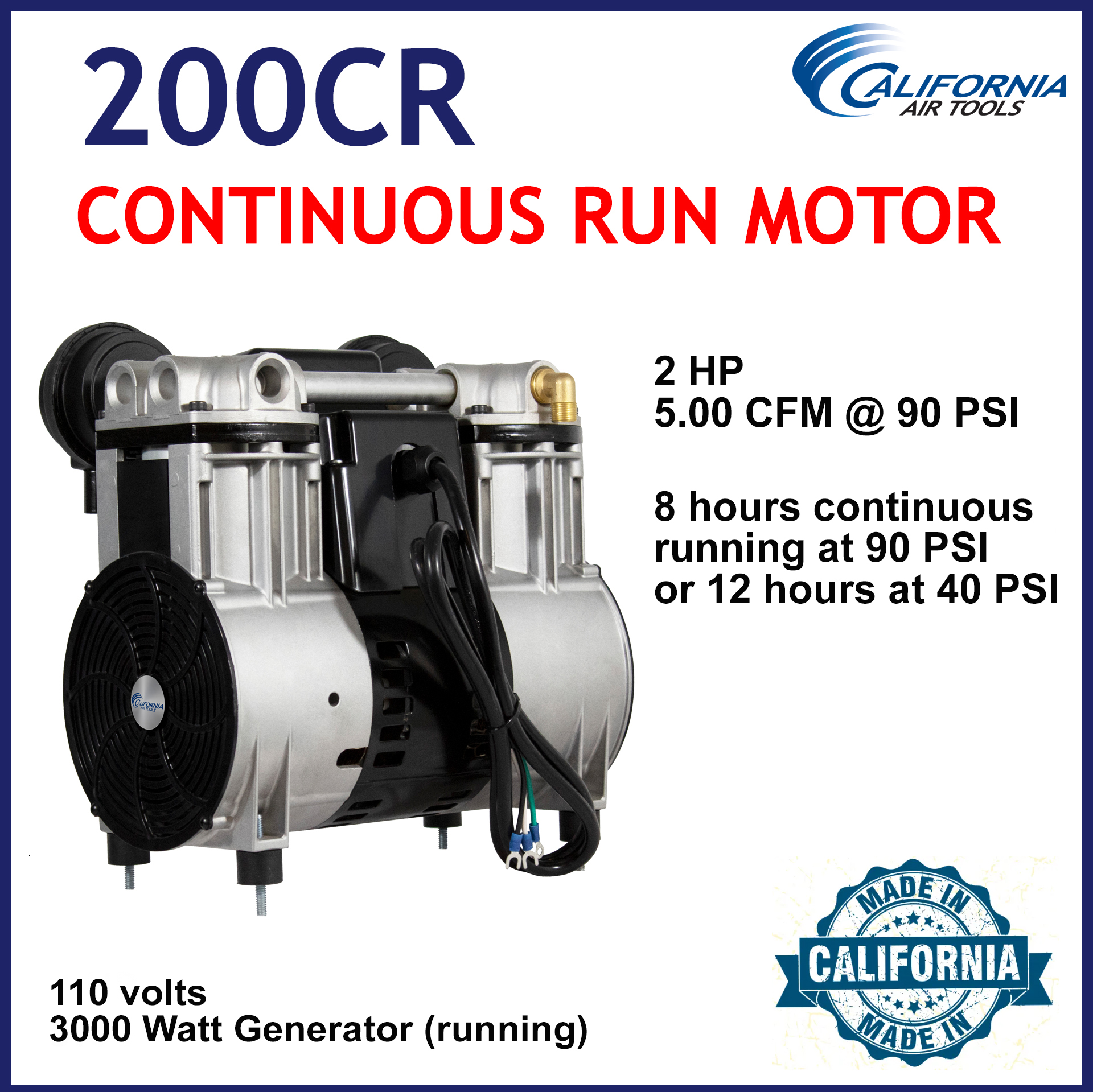

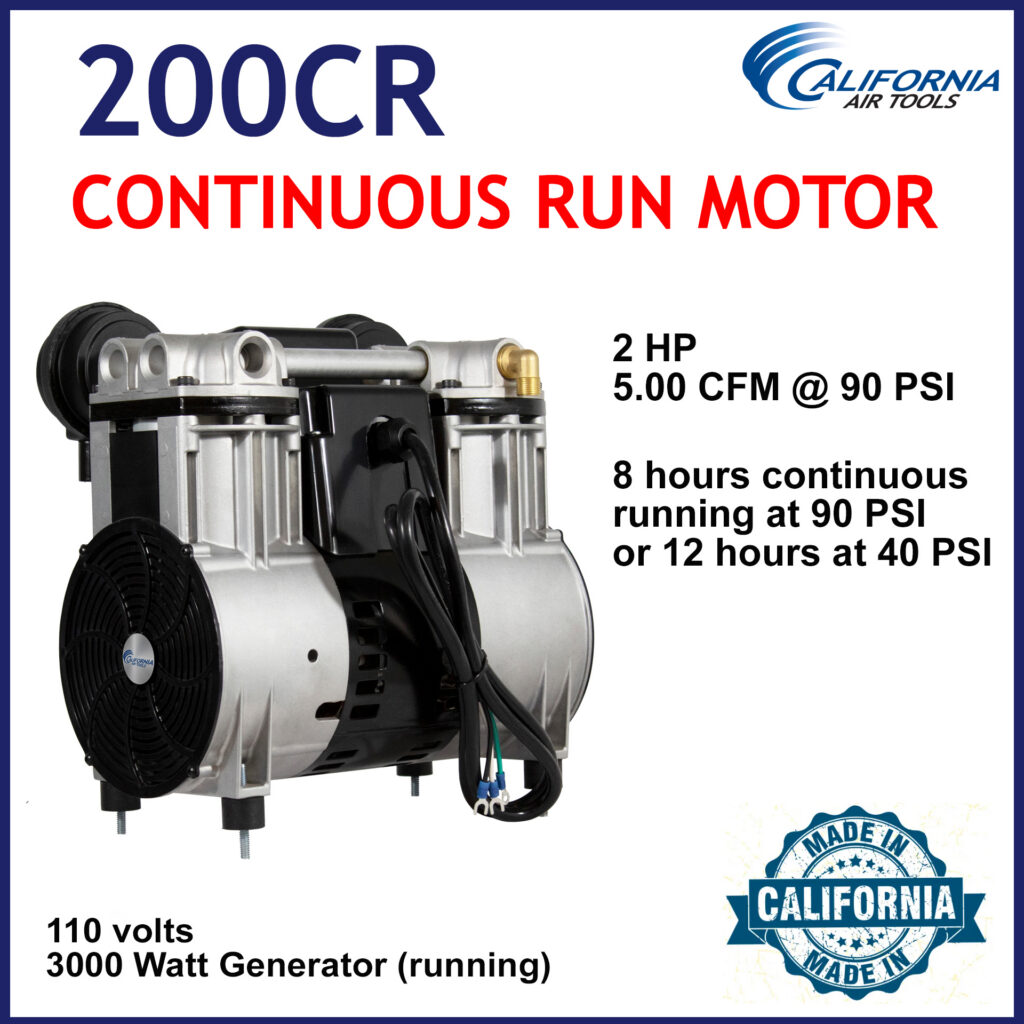

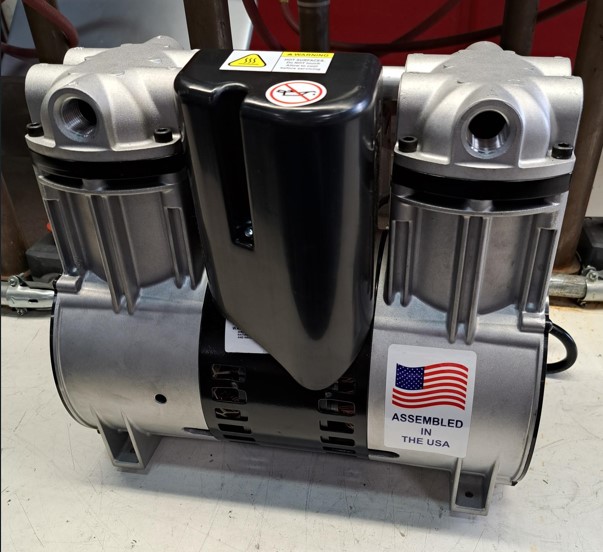

The California Air Tools 200CR Ultra Quiet & Oil-Free Continuous Air Compressor Motor/Pump is designed to be one of the quietest motors in the industry having only 77 decibels of sound.

The powerful 2.0 HP motor operates at only 1700 RPM creating less noise and less wear.

The Oil-Free Dual Piston Pump System is engineered for high performance and durability.

Up to 8 hours of continuous running at 90 PSI and 12 hours at 40 PSI

The Dual Piston Pump System produces more air more quickly.

The 200CR motor/pump is tested for a minimum life of 5000 hours before wear. Wear parts can be a piston ring, cylinder ring or reed valve



---

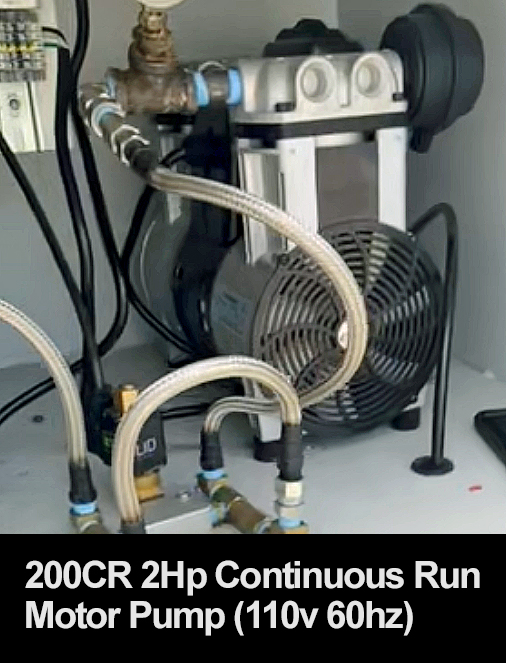

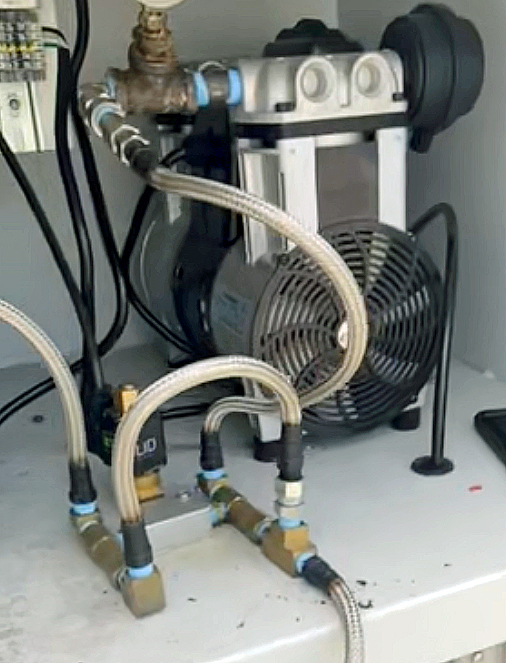

VIDEO – 200CR Continuous Run 2Hp Motor/Pump – Made in USA

---

Features:

* Ultra Quiet  –  Only 77 decibels

* Oil-Free Pump – Cleaner air for better tool operation.

                                   Less maintenance and Costs.

* Thermal Overload Protector

* 125 PSI  Maximum Pressure

* Ports – 1/2″ NPT

* Output Elbow – 3/8″ NPT

* 110v / 60 hz

* Low Amp Draw –  14 Amps

* Power Requirements:

   Dedicated 15 amp outlet

   3000 Watt (running) Generator

   Extension Cord: 14 gauge 100ft cord

   GFCI – Ok

* Maximum Operating (ambient)

    Temperatures: 0 to 50°C (32 to 122°F)

* 37 pounds

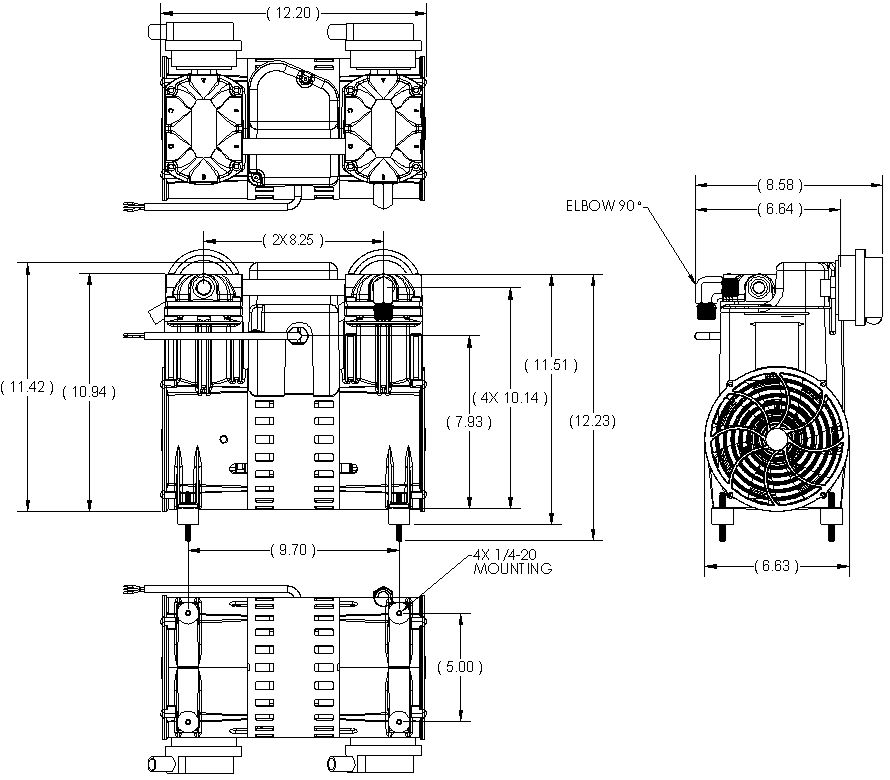

* L (11.75″) x W (6.75″) x H (12.5″)

* Comes complete with Elbow (attached)

    (2) Air Filters and (4) Shock Struts

* Installation Requirement: Unloader and/or

   Bleeder Valve Required.

* 1 Year Limited Warranty

* Certification: Pending

*  Made is USA





---

NOTE: This is NOT an air compressor. This is a replacement motor-pump which can be easily installed into existing California Air Tools equipment.

CAUTION: If installing onto a Non-California Air Tools air compressor or unique application you will need to have the electrical and mechanical knowledge for properly installing this motor-pump. It is important to properly configure an UNLOADER valve and CHECK VALVE with the motor pump (to correctly bleed pressure off of the pistons) otherwise damage to motor may occur.
