Description

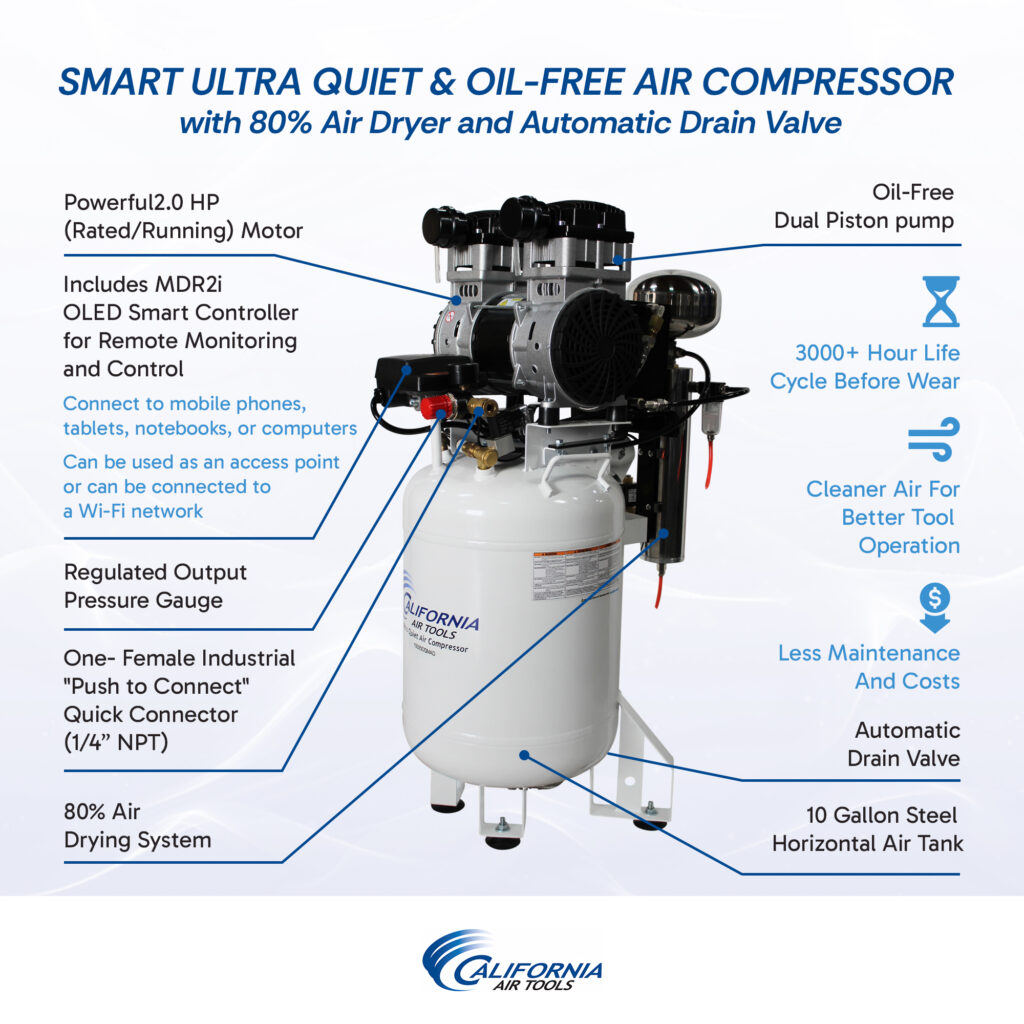

CALIFORNIA AIR TOOLS 10020DSMAD Powerful 2.0 Hp SMART Ultra Quiet & Oil-Free 10 Gallon Air Compressor with 80% Air Dryer and Automatic Drain Valve
70 dB Noise Level
110v 60hz
2.0 HP (Rated/Running)
10 Gallon Steel Horizontal Air Tank
6.40 CFM @ 40 PSI
5.30 CFM @ 90 PSI
80% Air Drying System
The CALIFORNIA AIR TOOLS 10020DSMAD Ultra Quiet & Oil-Free Air Compressor, with Automatic Drain Valve, is designed to be one of the quietest 2.0 horse power air compressors in the industry having only 70 decibels of sound.
Includes MDR2i OLED Smart Controller for remote monitoring and control
- Programmable ON/OFF Times
- Pressure ON Level
- Pressure OFF Level
- Unloader Relay Delay
- AutoDrain Time
- Drain Valve Time
- Overcurrent Limit
- Pressure Units
- Total Active (Motor-Pump) Running Hours
The MDR2i OLED Smart Controller may be connected to mobile phones, tablets, notebooks, or computers. The controller can be used as an access point or can be connected to a Wi-Fi network. Compressor features and parameters may be entered and controlled comfortably along with remote monitoring.
The powerful 2.0 HP motor operates at only 1680 RPM creating less noise, vibration and creating less wear. The Oil-Free Dual Piston Pump System is engineered for longevity, high performance and durability.
The SP-9421 Motor/Pump is tested for a minimum pump life of 3000 hours before service. 30% more life before repair. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*
The large 10.0 gallon steel air tank is only 91 lbs.
The 80% Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery.
To dry the air from the air compressor an Aftercooler and 80% Air Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer.
The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank.
The manually set timer allows you to set the time for both the frequency and duration of the draining process.
The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.
Designed for the person looking for Power, 80% Dry Airand Less Service with at Least 30% Less Noise! Ideal for Dental, Milling, Bio-Tech, Manufacturing, Packaging, Restaurant and General Engineering Applications.
Features:
* Ultra Quiet – Only 70 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Regulated output pressure gauge
* Pressure Regulator (0-120 PSI)
* One – Female Industrial “Push to Connect” quick connector (1/4″ NPT)
* Easy Start Valve – For Less Starting Amperage
* MDR2i OLED Smart Controller for remote monitoring and control
* Thermal Overload Protector
* Working Pressure 90-120 PSI (+/-5 PSI). Adjustable up to 105 PSI Kick-On; 130 PSI Kick-Off maximum.
* 110v / 60 Hz
* Low Amp Draw – Only 14.0 Amps
* Tank fill rate from empty to full – 130 Seconds
* Recovery time from 95 PSI to 125 PSI – 40 Seconds
* Duty Cycle – 70/30*
* L (16″) x W (23″) x H (35″)
* 95 pounds
* Non-ASME Air Tank
* Air Dryer – Includes Activated Alumina desiccant with a 4000 hour life.
Activated Alumina is used in air prepurification (due to it’s high water
and carbon dioxide adsorption capacity) and adsorption of sulphur
compounds.
* Aftercooler (condenser)
* EZ-1-2321 Auto Drain Valve Factory Installed
* 1 Year Limited Warranty
* Manufactured in Mexico-USA. Assembled in USA using global components.
* Commercial Use: Refer to State & City Codes
Product Video Reference: CAT-10020DCAD (without Smart Controller)
DRY AIR SYSTEM MAINTENANCE:
Recommended replacement of 1lb bag of desiccant, located within vertical dry air tower, every 3000-4000 motor/pump running hours (1-2 years/average).
PERIODIC MAINTENANCE REQUIREMENTS:
Replace the 98% Air Dryer Cannister/Cartridge every 4000 operating hours (~2 years on average).
Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
Part Number 90260
Add-On Options:
8mm PTFE Black Hose Tubing (10 feet long) to connect to Automatic Drain Valve
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 50 Foot Hybrid Air Hose
317 Water (moisture) & Oil Separator Air Filter 1/4″ NPT
Refrigerated 98% Air Dryer, RD-91502, 110v 60hz
EZ2321ADL Automatic Drain Valve Long Extension Kit (110v 60 hz)
EZ-1 Automatic Drain Valve Owner’s Manual 12-20SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
Auto Drain Connectivity (Instructions)
*70/30 Duty Cycle – Click Here For More Information
*California Air Tools is not responsible for improper remote control connectivity which may be attributed to unverified or unknown installation site variables, including Modem/Router equipment, WiFi signal connectivity indifferences, static vs. dynamic protocols, internet availability, signal strength or other unknown factors which could interfere with ideal remote operability and are beyond California Air Tools control and subsequent warranty coverage.
