Description
CALIFORNIA AIR TOOLS 10020SMHAD Powerful 2.0 Hp SMART Ultra Quiet & Oil-Free 10 Gallon Air Compressor with Automatic Drain Valve
70 dB Noise Level
110v 60hz
2.0 HP (Rated/Running)
10 Gallon Steel Horizontal Air Tank
6.40 CFM @ 40 PSI
5.30 CFM @ 90 PSI

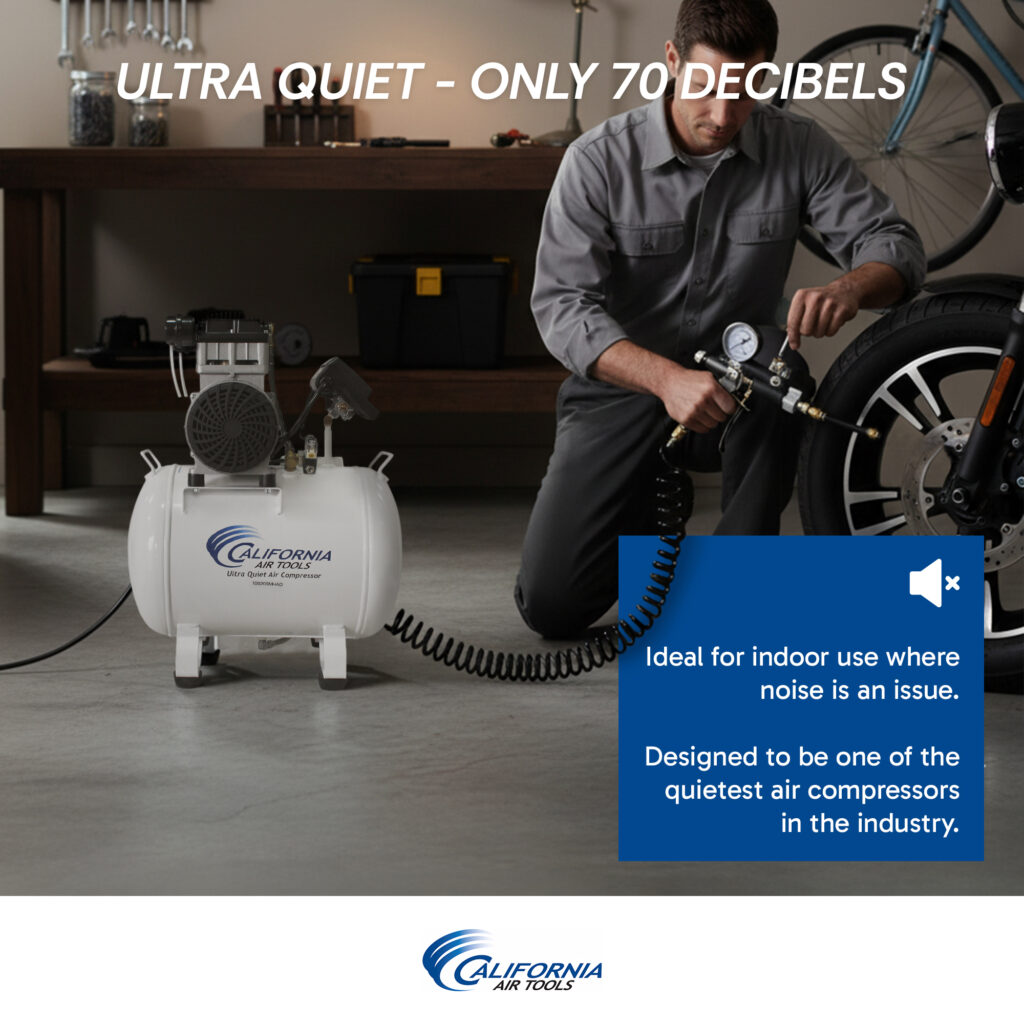

The CALIFORNIA AIR TOOLS 10020SMHAD SMART Ultra Quiet & Oil-Free 10 Gallon Air Compressor is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound.
Includes MDR2i OLED Smart Controller for remote monitoring and control
- Programmable ON/OFF Times
- Pressure ON Level
- Pressure OFF Level
- Unloader Relay Delay
- AutoDrain Time
- Drain Valve Time
- Overcurrent Limit
- Pressure Units
- Total Active (Motor-Pump) Running Hours
The MDR2i OLED Smart Controller may be connected to mobile phones, tablets, notebooks, or computers. The controller can be used as an access point or can be connected to a Wi-Fi network. Compressor features and parameters may be entered and controlled comfortably along with remote monitoring.
The Powerful 2.0 HP motor operates at only 1680 RPM creating less noise and less wear.
The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*
The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
The CAT-10020SMHAD SMART Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).
The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.
The large low profile 10 Gallon Steel Horizontal Air Tank makes storing under a bench, desk or shelf very easy.
The factory installed California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and
duration of the draining process.
The 10020SMHAD model is ideal for placement on or under a shelf; the automatic drain valve supports required maintenance by removing water from the air tank on a regular basis.
The 10020SMHAD is designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise!
Features:
* Ultra Quiet – Only 70 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Regulated output pressure gauge
* Pressure Regulator (0-120 PSI)
* One – Female Industrial “Push to Connect” quick connector (1/4″ NPT)
* Easy Start Valve – For Less Starting Amperage
* MDR2i OLED Smart Controller for remote monitoring and control
* Thermal Overload Protector
* Working Pressure 90-120 PSI (+/-5 PSI). Adjustable up to 105 PSI Kick-On; 130 PSI Kick-Off maximum.
* 110v / 60 hz
* Low Amp Draw – 14 Amps
* Dedicated 15 amp outlet -14 gauge 25ft cord – Min. 5500 Watt Generator
* Time to fill tank from empty to full – 120 Seconds
* Recovery time from 95 PSI to 125 PSI – 25 Seconds
* Duty Cycle – 70/30*
* Less heat which dissipates more efficiently
* 10 Gallon Steel (Low Profile) Horizontal Air Tank
* EZ-1-2301 Automatic Drain Valve (with manual drain valve)
The California Air Tools EZ-1 Automatic Drain Valve has been designed to
eliminate manually draining your air compressor air tank.
* L (19″) x W/D (15″) x H (26.5″)
* 75 lbs
* Non-ASME Air Tank
* 1 Year Limited Warranty
* Comes complete Two Air Filters
* Manufactured in Mexico-USA. Assembled in USA using global components.
* Commercial Use: Refer to State & City Codes
Product Video Reference: CAT-10020HDCADC (without Smart controller)
PERIODIC MAINTENANCE REQUIREMENTS:
Replace the 98% Air Dryer Cannister/Cartridge every 4000 operating hours (~2 years on average).
Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment. Part Number 90260
Add-On Options:
8mm PTFE Black Hose Tubing (10 feet long) to connect to Automatic Drain Valve
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 50 Foot Hybrid Air Hose
317 Water (moisture) & Oil Separator Air Filter 1/4″ NPT
Refrigerated 98% Air Dryer, RD-91502, 110v 60hz
EZ2321ADL Automatic Drain Valve Long Extension Kit (110v 60 hz)
California Air Tools 10020SMHAD Owners Manual_0226
Smart Controller MDR2i Owners Manual_10132025
EZ-1 Automatic Drain Valve Owner’s Manual 12-20
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
Auto Drain Connectivity (Instructions)
*70/30 Duty Cycle – Click Here For More Information
