Description

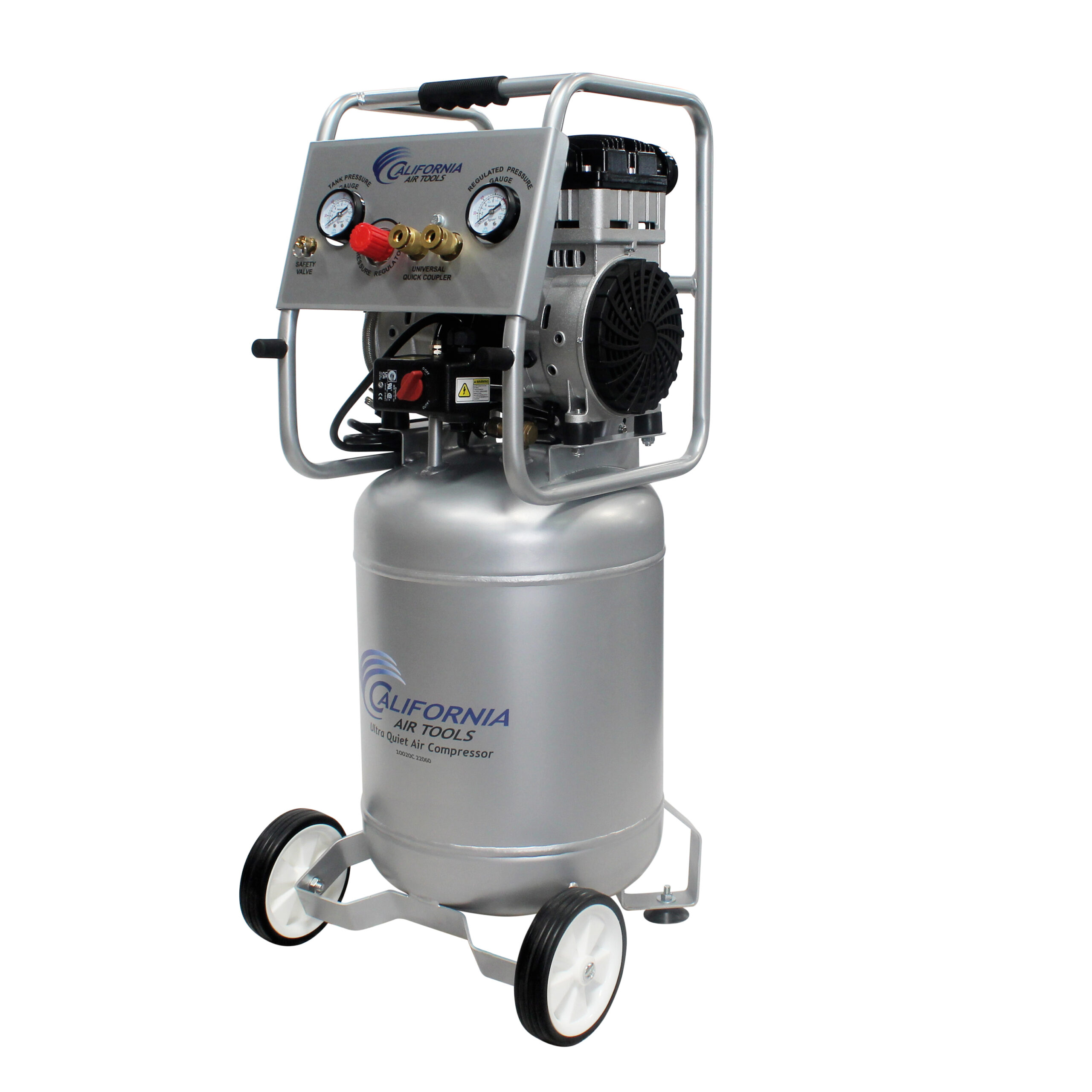

CALIFORNIA AIR TOOLS 10020C-22060 Ultra Quiet, Oil-Free Powerful 10 Gallon 2.0 Hp Air Compressor (220v 60hz)



2.0  HP (Rated/Running)

10 Gallon Steel Tank

6.40 CFM @ 40 PSI

5.30 CFM @ 90 PSI

70 dB Noise Level

220v 60hz 1-phase

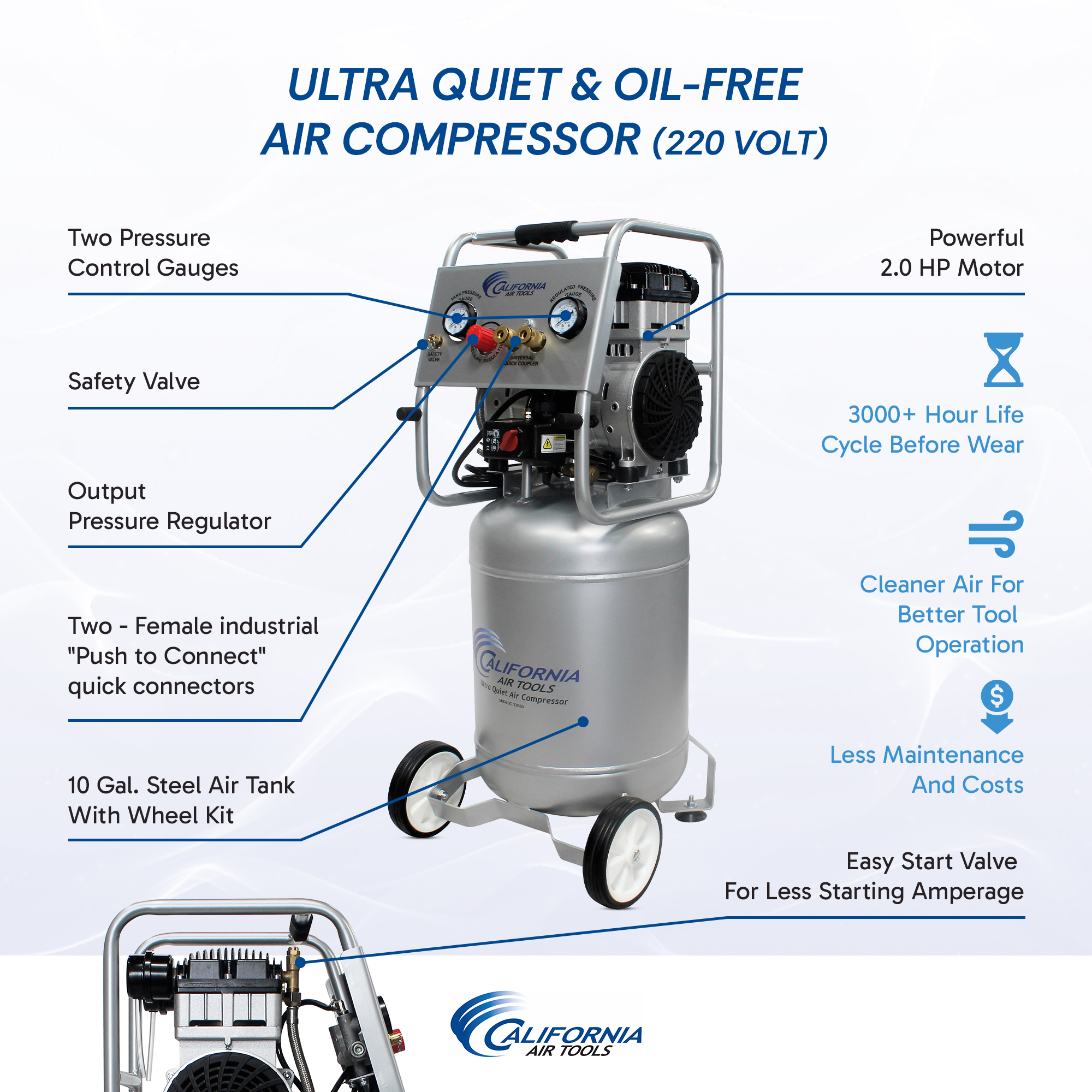

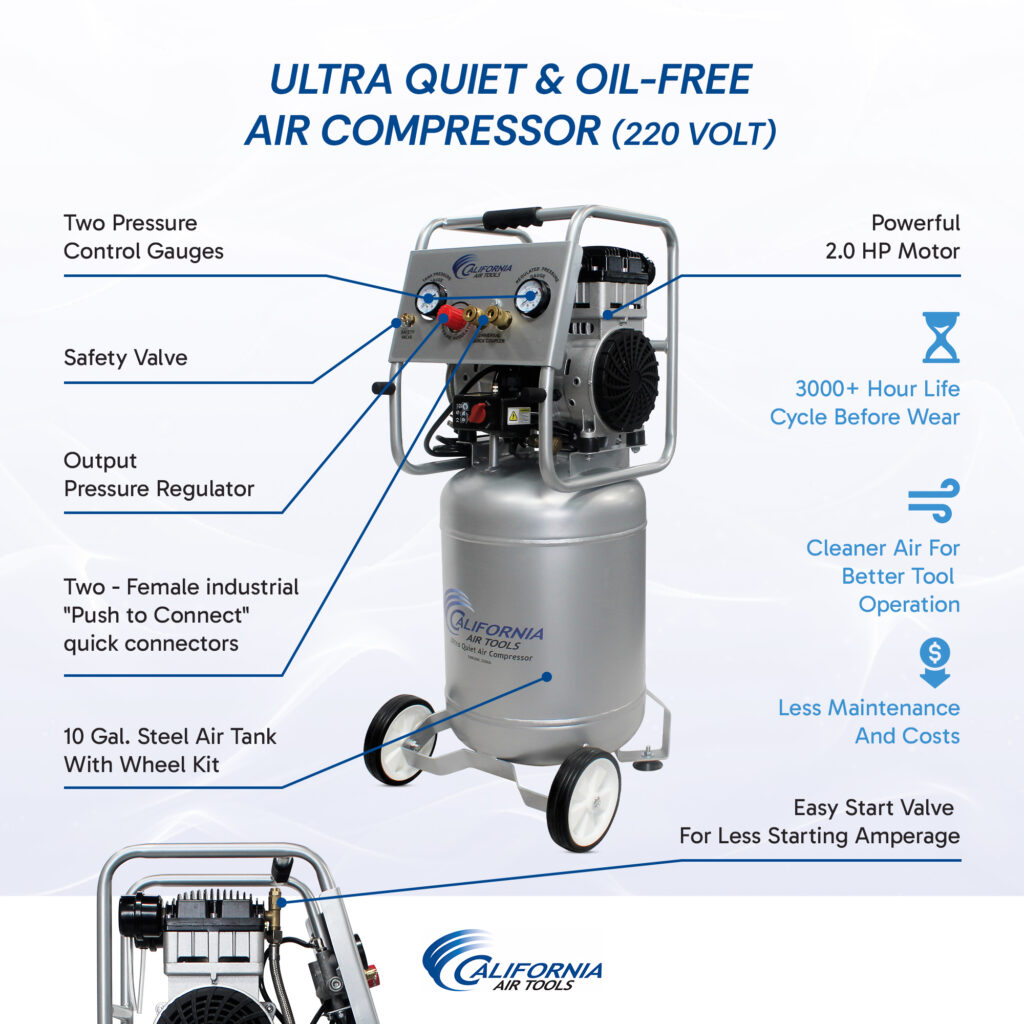

The CALIFORNIA AIR TOOLS 10020C-22060 Ultra Quiet & Oil-Free 10-Gallon Air Compressor (220v 60hz only) is designed to be one of the quietest  2.0 Hp air compressors in the industry having only 70 decibels of sound.





The Powerful 2.0 HP (SP-9421-22060) motor operates at only 1680 RPM creating less noise and less wear.



The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*

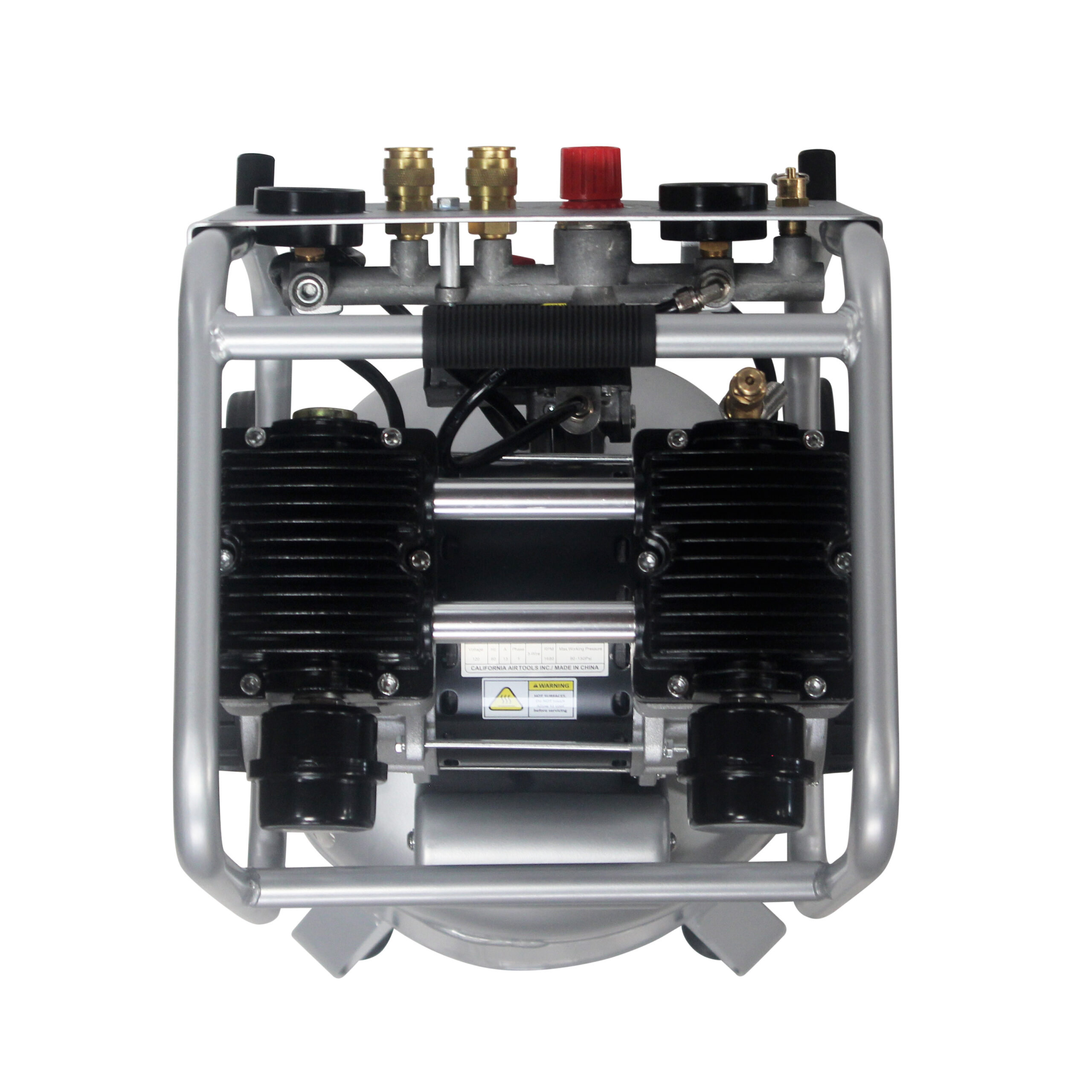

The Oil-Free Dual Piston Pump System is engineered for high performance and durability.



The CAT-10020C-22060 Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours.



The Oil-Free pump allows for use in a variety of temperatures  (cold starts) and uneven terrains (no oil in the pump).

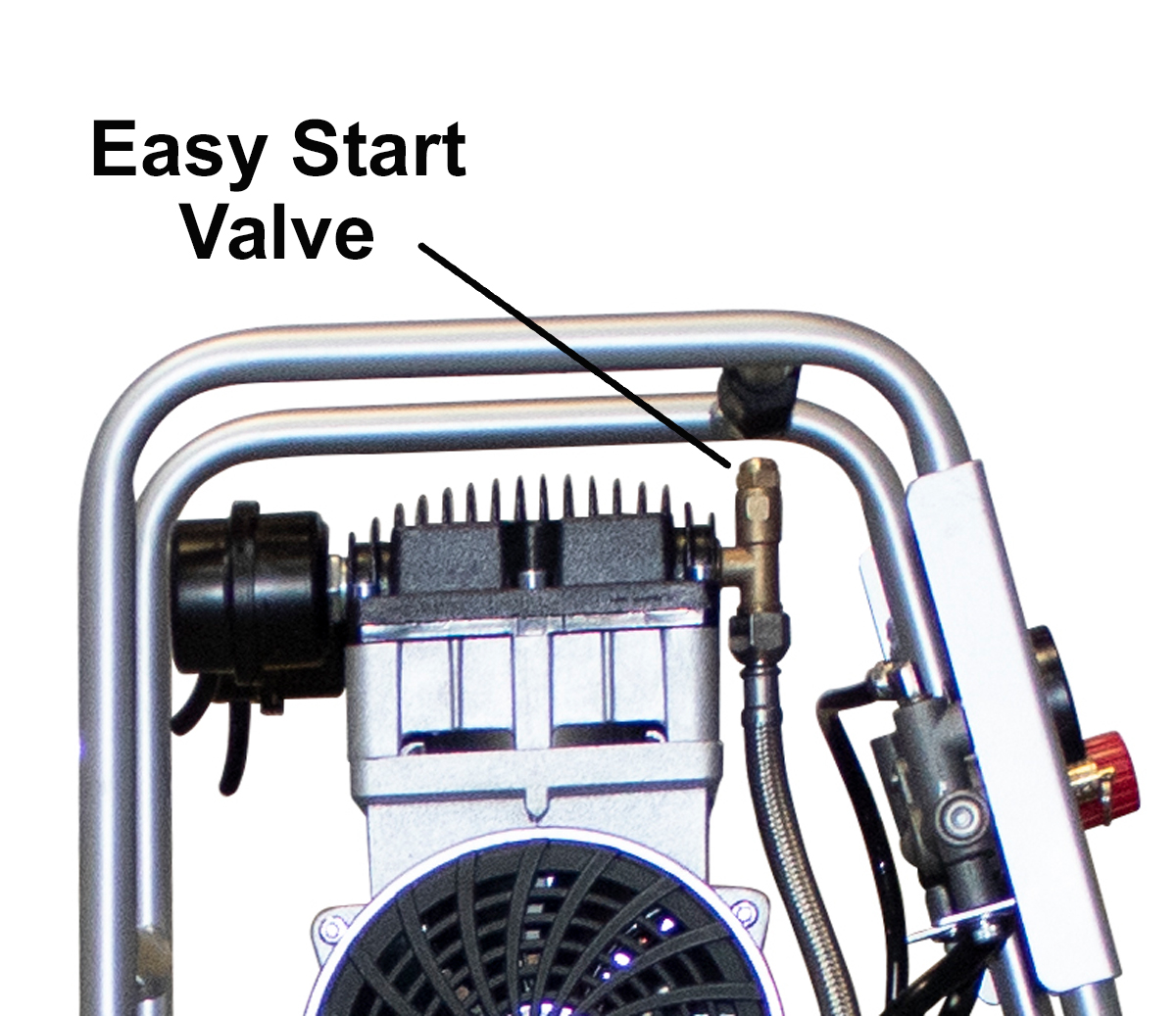

The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.



The large 10 Gallon Steel Air Tank with wheel kit makes it very easy to move around the jobsite, shop or garage.



Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise!

Features:

* 220v / 60 hz / Single Phase  (No 208 Volts – if necessary, obtain 208 to 220 voltage booster)

* Low Amp Draw – 7.5 Amps

* Generator with 3000 Running Watts

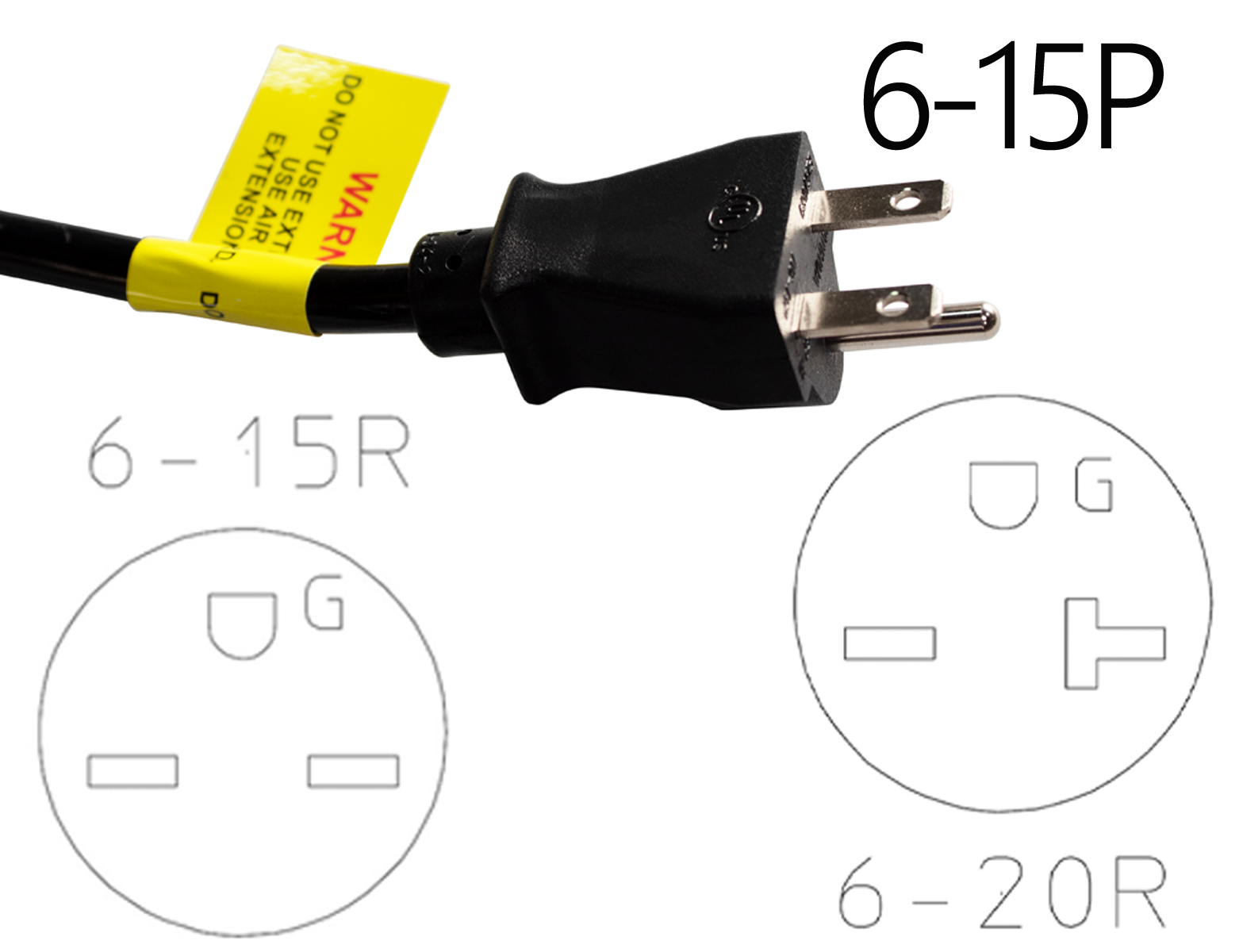

* Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)

* Time to fill tank from empty to full – 120 Seconds

* Recovery time from 95 PSI to 125 PSI – 25 Seconds

* Duty Cycle – 70/30*

* Less heat which dissipates more efficiently

* 10 Gal. Steel Air Tank With Wheel Kit – Easy to move around.

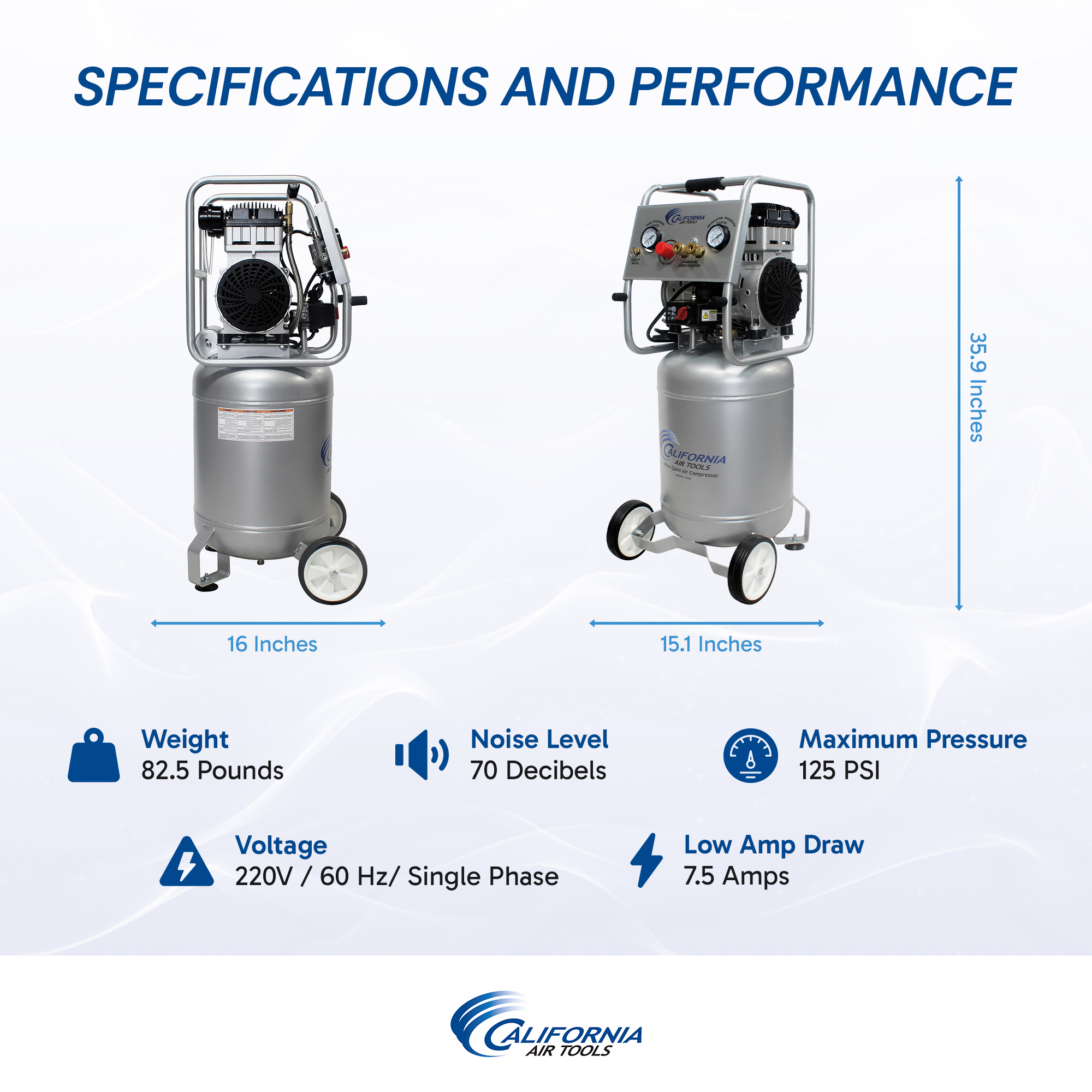

* L (16″) x W/D (15.1″) x H (36″)

* 82.5 lbs

* Non-ASME Air Tank

* 1 Year Limited Warranty

* Comes complete with Wheel Kit & Two Air Filters

* Assembled in USA

* Commercial Use: Refer to State & City Codes

---

PERIODIC MAINTENANCE REQUIREMENTS:

Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.

Part Number 90260

---

Add-On Options:

8mm PTFE Black Hose Tubing (10 feet long) to connect to Automatic Drain Valve

16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)

California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose

317 Water (moisture) & Oil Separator Air Filter 1/4″ NPT

Refrigerated 98% Air Dryer, RD-91502, 110v 60hz

EZ2321ADL Automatic Drain Valve Long Extension Kit (110v 60 hz)

---

California Air Tools 10020C-22060 Owners Manual 1-16

SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor

SUPPORT VIDEO – How to Connect Air Hose to Air Compressor

Auto Drain Connectivity (Instructions)

---

*70/30 Duty Cycle – Click Here For More Information
