The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The

manually set timer allows you to set the time for both the frequency and duration of the draining process. (Factory Pre-Set)

The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition  allowing the motor to spin freely. This no-load start up requires less amps for a easier  start up in cold temperatures.

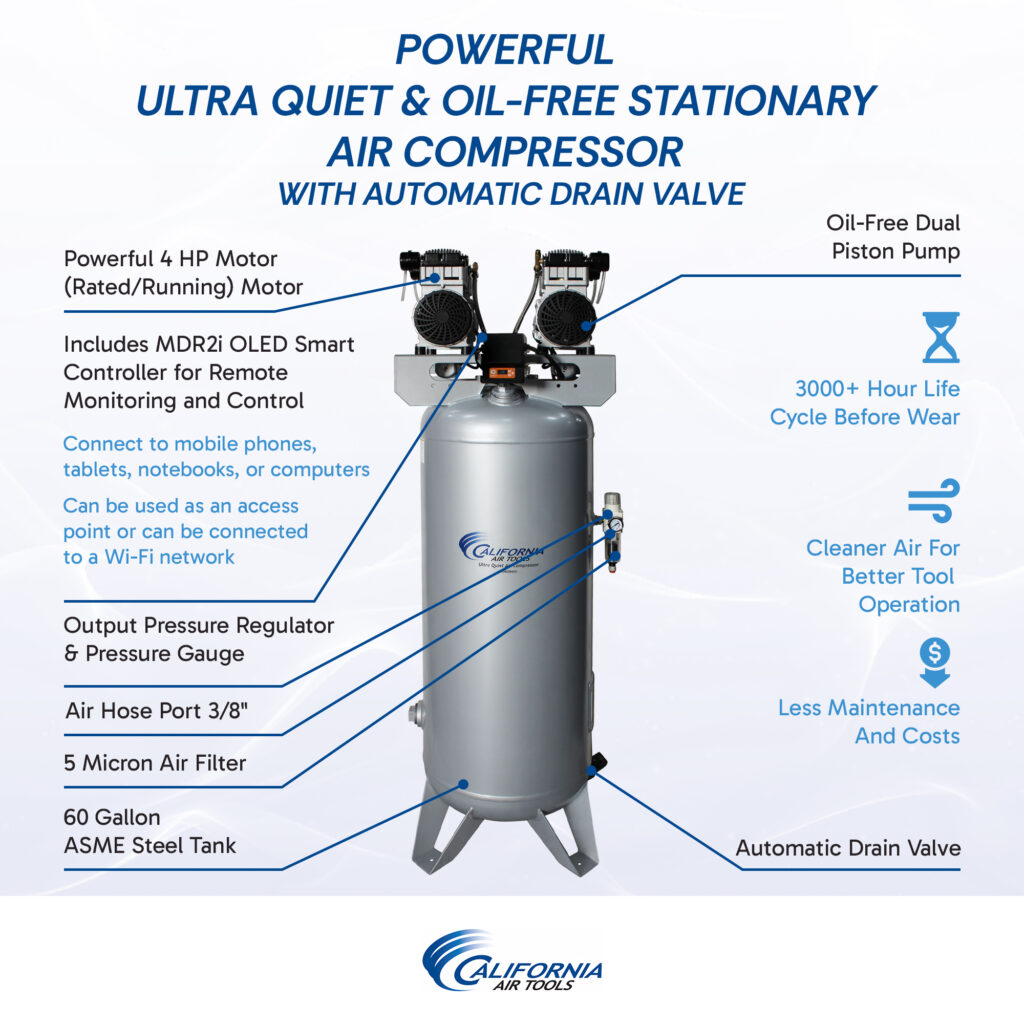

Designed for the person looking for Power, Air Flow and Less Service with at Least 30% Less Noise! The large 60 Gallon Steel ASME Air Tank is just the right size for shop or garage.



Features:

* Ultra Quiet  –  Only 75  decibels

* Oil-Free Pump – Cleaner air for better tool operation.

Less maintenance and Costs.

* Regulated output pressure gauge

* 5 Micron Air Filter & Regulator with 3/8″ Female Air Port

* Air Hose Port, Female, 3/8″ NPT

* MDR2i OLED Smart Controller for remote monitoring and control

* Thermal Overload Protector

* Working Pressure 90-120 PSI (+/-5 PSI). Adjustable up to 105 PSI Kick-On; 130 PSI Kick-Off

maximum.

* 220 Volt / 60 Hertz / Single Phase – (No 208 Volts – if necessary, obtain 208 to 230 voltage booster). Acceptable Range: 215VAC – 245VAC.

* Low Amp Draw – 14 Amps

* Easy Start Valves  – For Less Starting Amperage

* Time to fill tank from empty to full – 6:30 Minutes

* Recovery time from 95 PSI to 125 PSI – 2:00 Minutes

* Duty Cycle – 70/30*

* Less heat which dissipates more efficiently

* 60 Gallon Steel ASME Certified Air Tank

* L (35″) x W/D (28″) x H (68″)

* 328 lbs

* EZ-1-2301 Automatic Drain Valve (with manual drain valve)

The California Air Tools EZ-1 Automatic Drain Valve has been designed to

eliminate manually draining your air compressor air tank.

* Comes complete (4) Air Filters

* Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)

* 1 Year Limited Warranty

* Manufactured in Mexico-USA. Assembled in USA using global components.

* Commercial Use: Refer to State & City Codes

---

CAT-60040CAD base-model video overview (without Smart Controller)

Getting Started Video Guide

---

PERIODIC MAINTENANCE REQUIREMENTS:

Replace the 98% Air Dryer Cannister/Cartridge every 4000 operating hours (~2 years on average).

Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment. Part Number 90260

---

Add-On Options:

8mm PTFE Black Hose Tubing (10 feet long) to connect to Automatic Drain Valve

16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)

California Air Tools Hybrider Flex 1/4in 50 Foot Hybrid Air Hose

317 Water (moisture) & Oil Separator Air Filter 1/4″ NPT

Refrigerated 98% Air Dryer, RD-91502, 110v 60hz

EZ2321ADL Automatic Drain Valve Long Extension Kit (110v 60 hz)

---

Smart Controller MDR2i Owners Manual_10132025

EZ-1 Automatic Drain Valve Owner’s Manual 12-20

SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor

SUPPORT VIDEO – How to Connect Air Hose to Air Compressor

Auto Drain Connectivity (Instructions)

---

*70/30 Duty Cycle – Click Here For More Information

---

*California Air Tools is not responsible for improper remote control connectivity which may be attributed to unverified or unknown installation site variables, including Modem/Router equipment, WiFi signal connectivity indifferences, static vs. dynamic protocols, internet availability, signal strength or other unknown factors which could interfere with ideal remote operability and are beyond California Air Tools control and subsequent warranty coverage.
